Factory Installed - Without Crew Chief

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

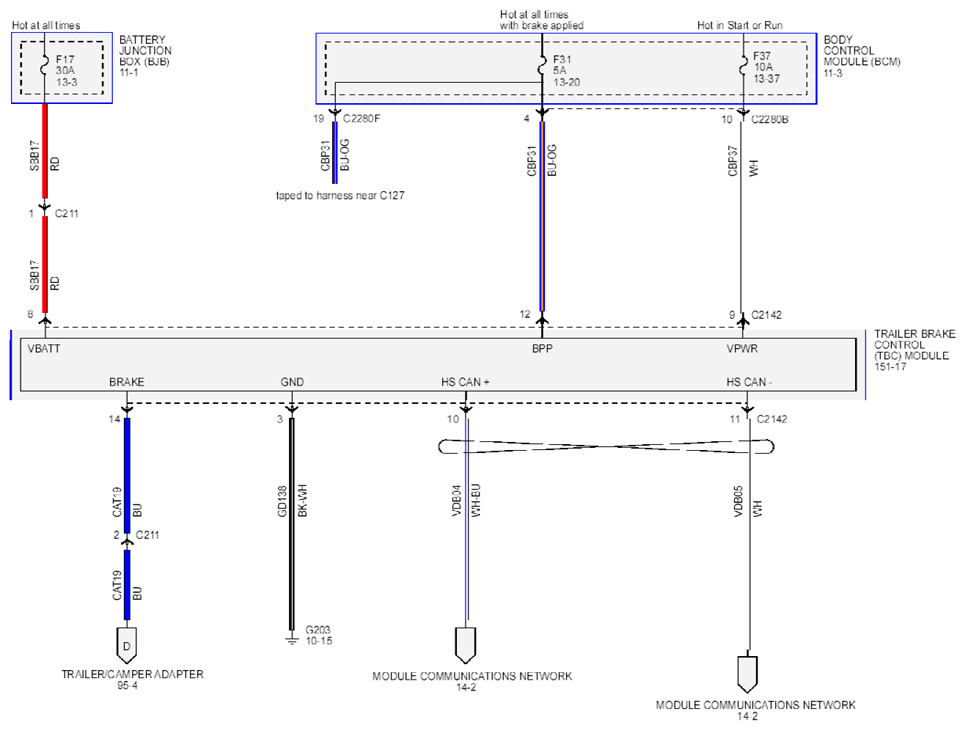

Fig 1: Trailer Camper Adapter Circuit Diagram (Factory Installed - Without Crew Chief)
G07907216Courtesy of FORD MOTOR CO.
