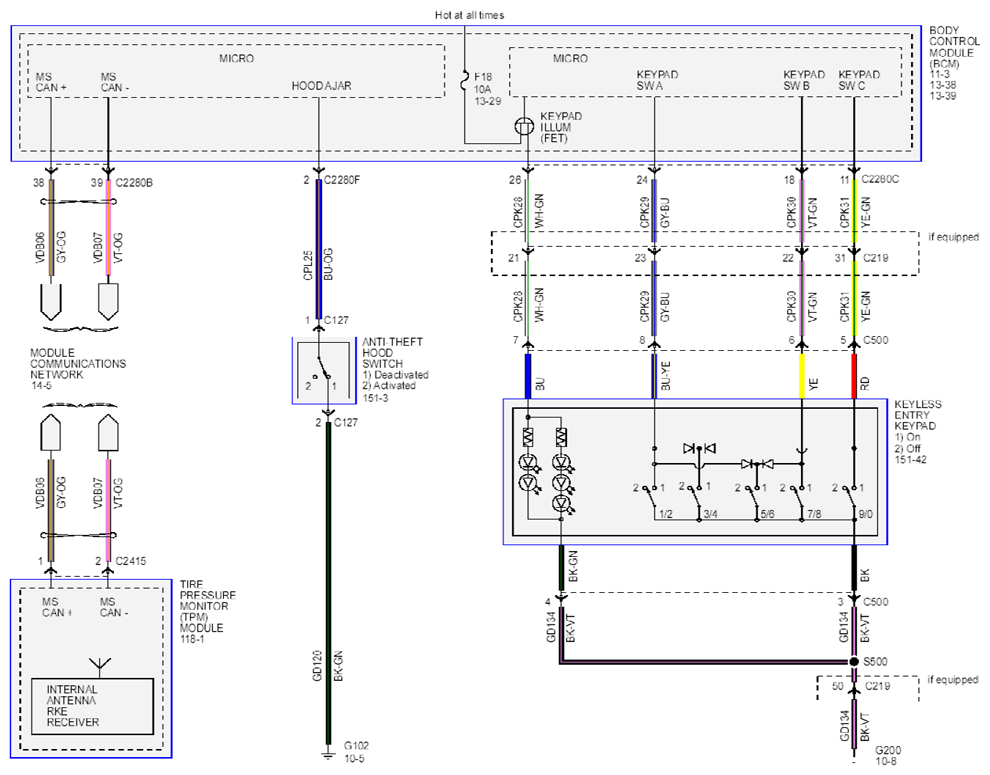

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram - Super Cab (1 Of 2)
Courtesy of FORD MOTOR CO.

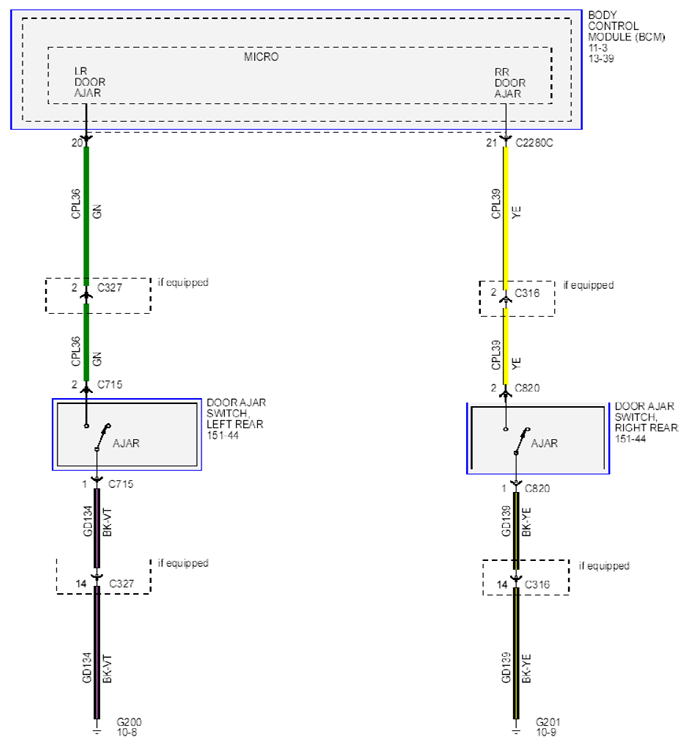

Fig 2: Remote Keyless Entry And Alarm Circuit Diagram - Super Cab (2 Of 2)
