6-Way Power Seat Without Memory - Driver

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

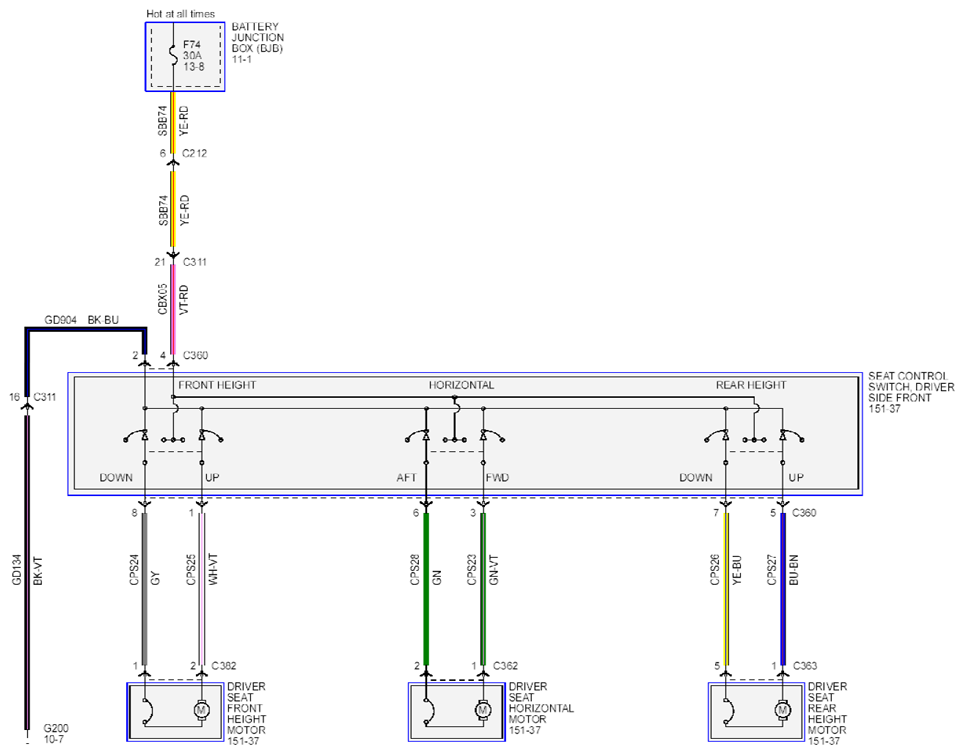

Fig 1: Power Seats Circuit Diagram (6-Way Power Seat Without Memory - Driver)
G07907245Courtesy of FORD MOTOR CO.
