10-Way Power Seat - Passenger

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

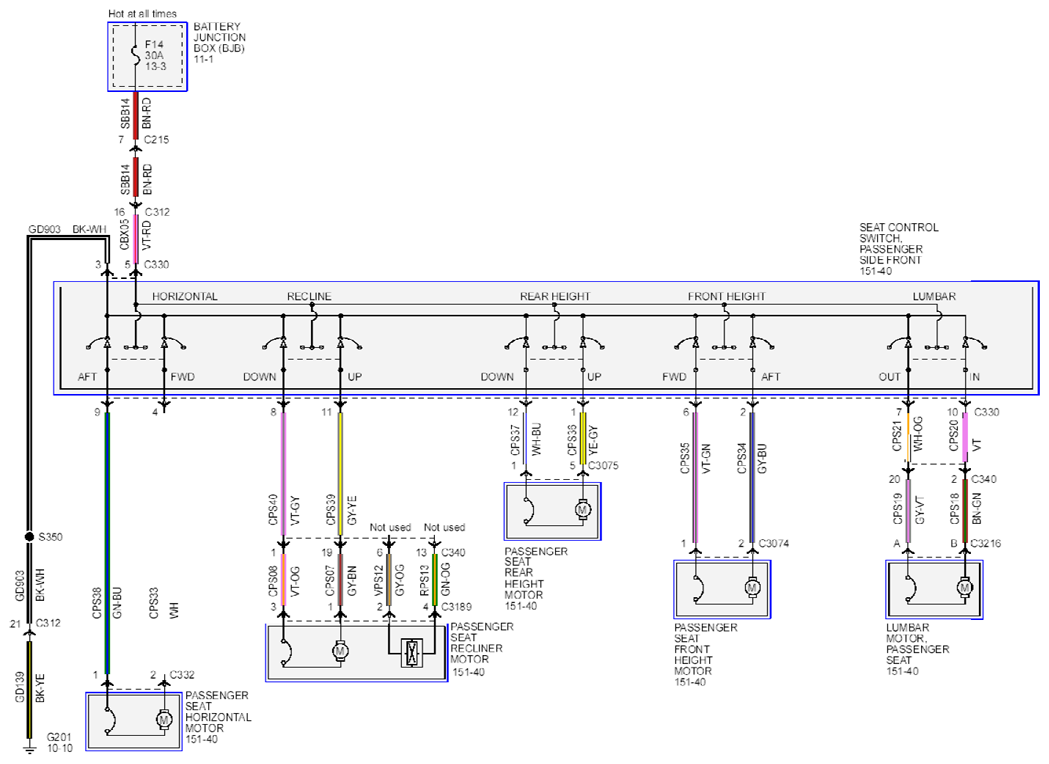

Fig 1: Power Seats Circuit Diagram (10-Way Power Seat - Passenger)
G07907246Courtesy of FORD MOTOR CO.
