WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

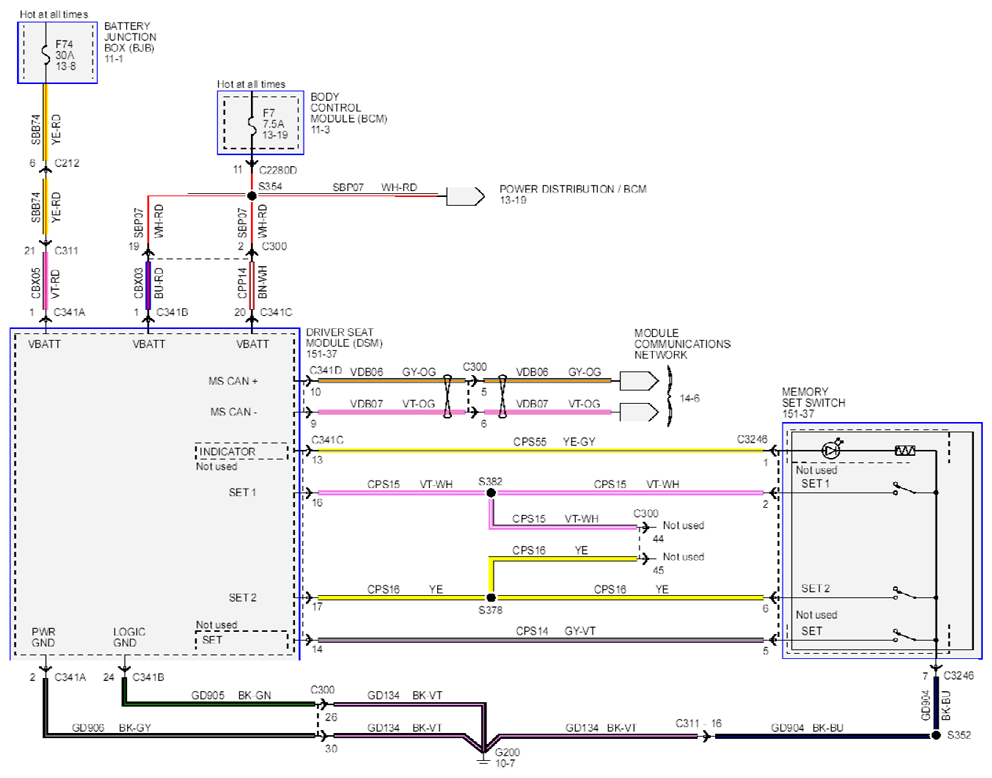

Fig 1: Power Mirrors Circuit Diagram - With Memory (1 Of 5)
Courtesy of FORD MOTOR CO.

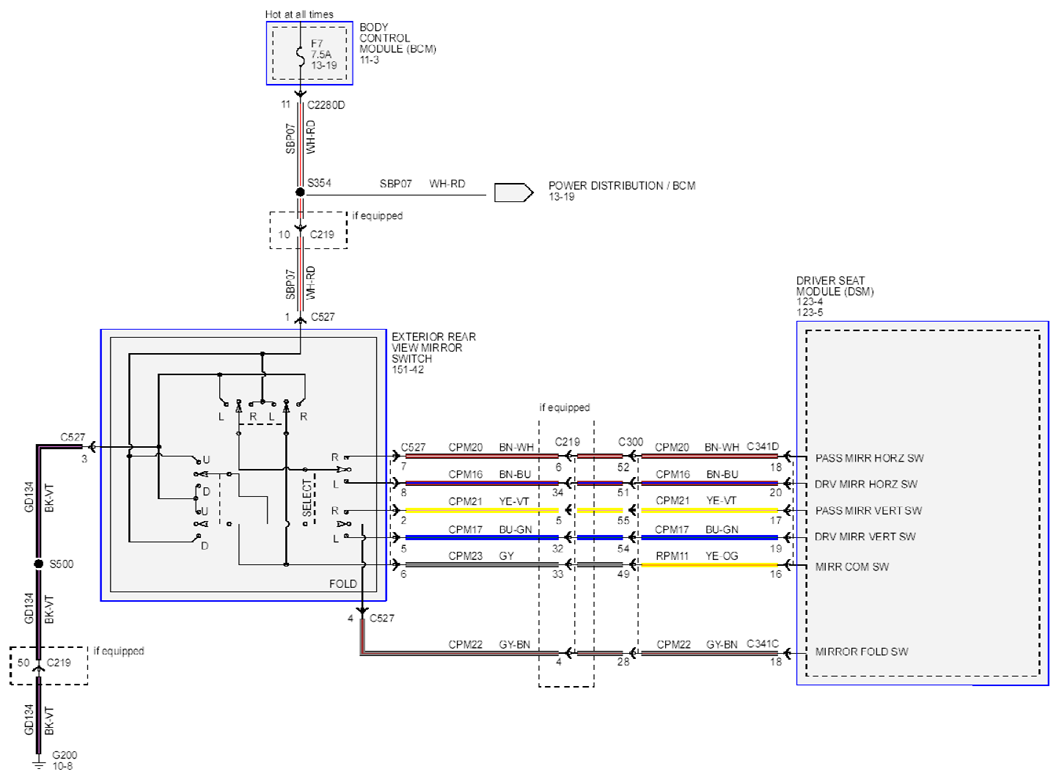

Fig 2: Power Mirrors Circuit Diagram - With Memory (2 Of 5)
Courtesy of FORD MOTOR CO.

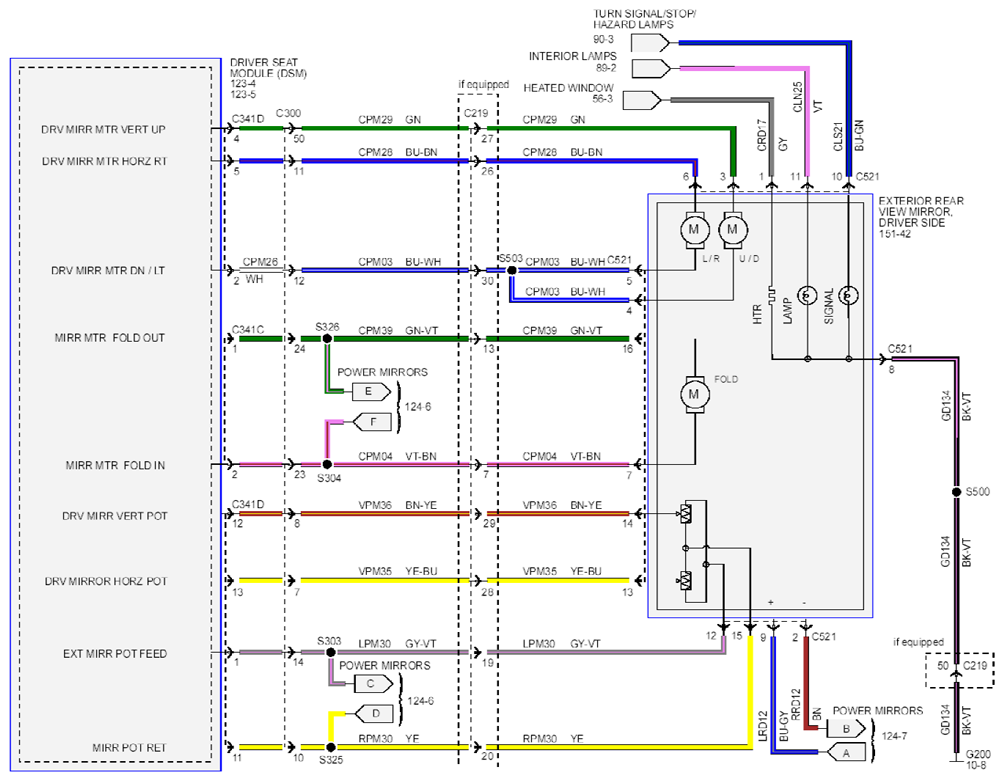

Fig 3: Power Mirrors Circuit Diagram - With Memory (3 Of 5)
Courtesy of FORD MOTOR CO.

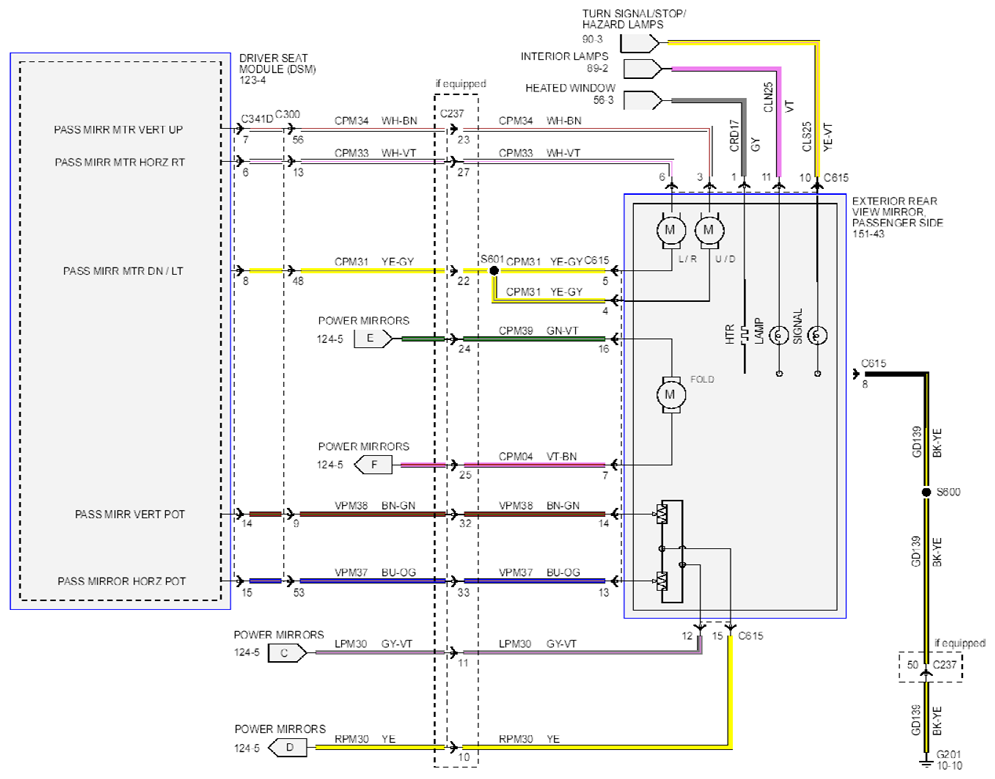

Fig 4: Power Mirrors Circuit Diagram - With Memory (4 Of 5)
Courtesy of FORD MOTOR CO.

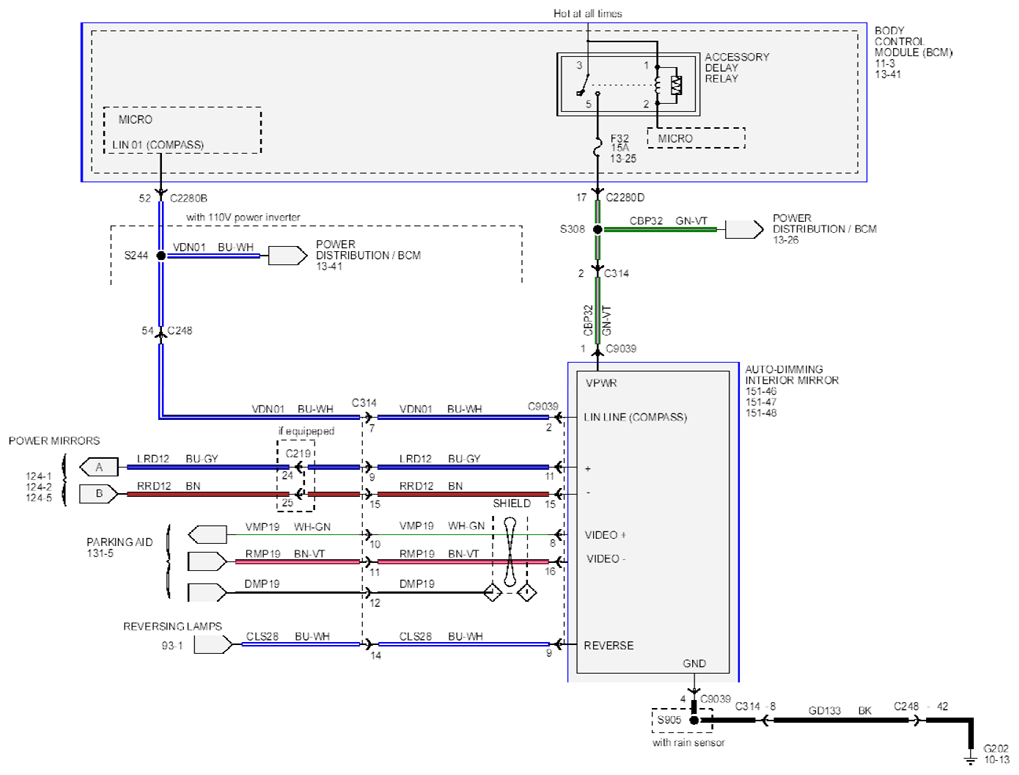

Fig 5: Power Mirrors Circuit Diagram - With Memory (5 Of 5)
