Section 196 (OEM Wiring Diagrams - F150)
>>
Power Mirrors
>>
W/O Memory W/O Inline Connector At Doors
W/O Memory W/O Inline Connector At Doors
WARNING:
This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

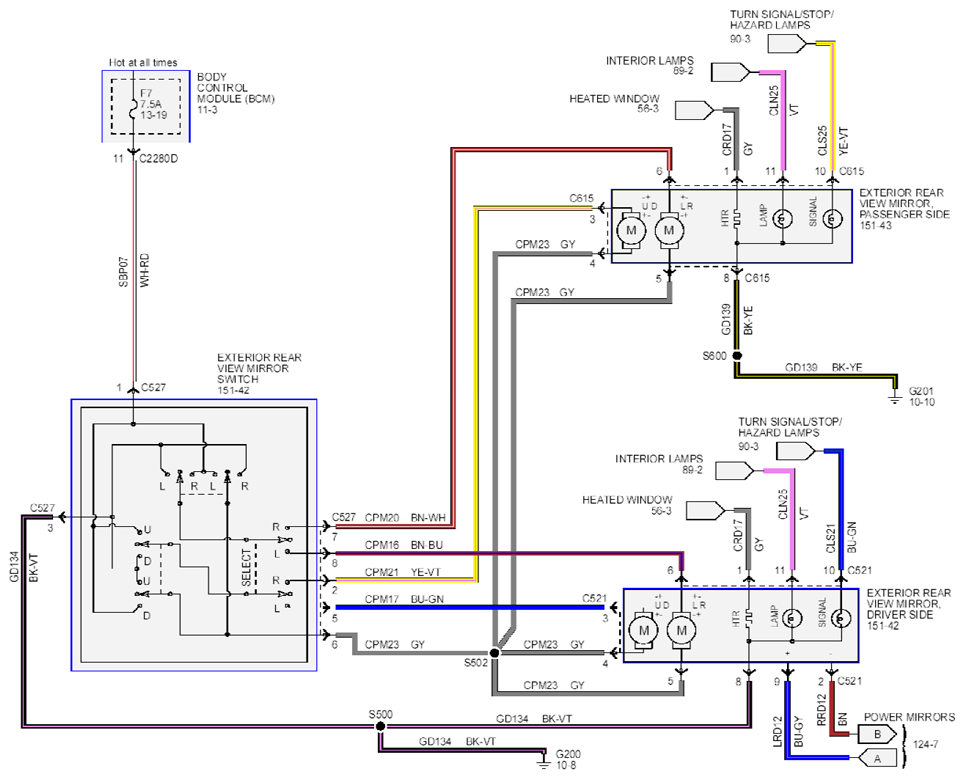

Fig 1: Power Mirrors Circuit Diagram - W/O Memory W/O Inline Connector At Doors
Courtesy of FORD MOTOR CO.
