F65, F66, F68, F69, F72

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

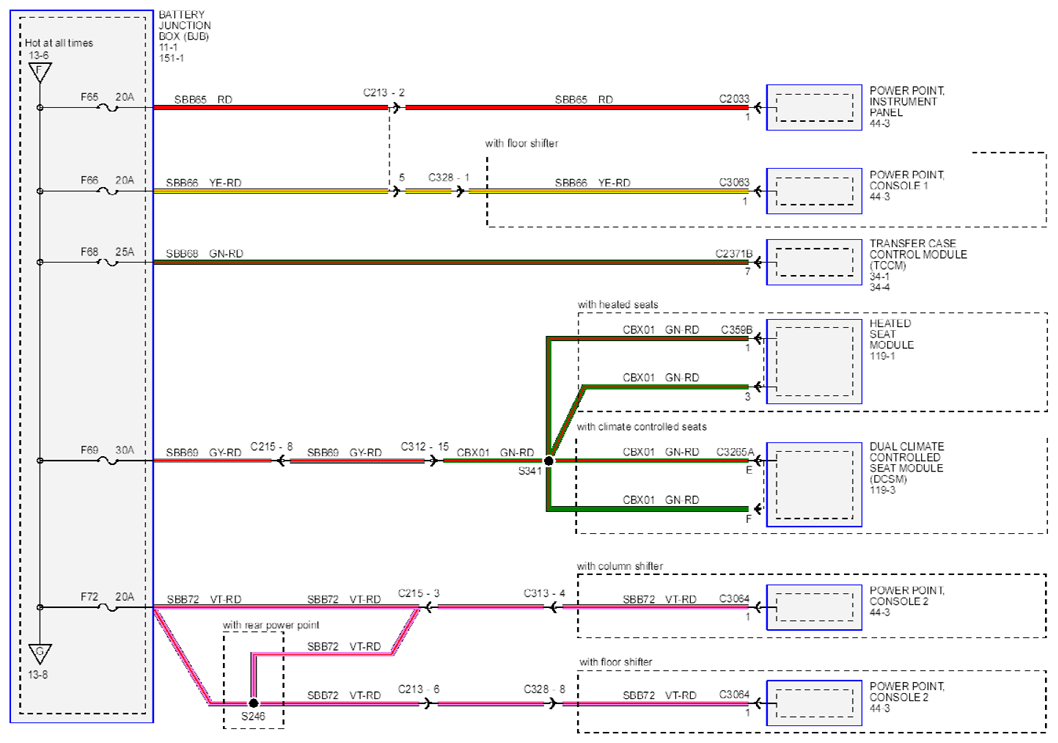

Fig 1: Power Distribution BCM Circuit Diagram (F65, F66, F68, F69, F72)
G07907035Courtesy of FORD MOTOR CO.
