WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

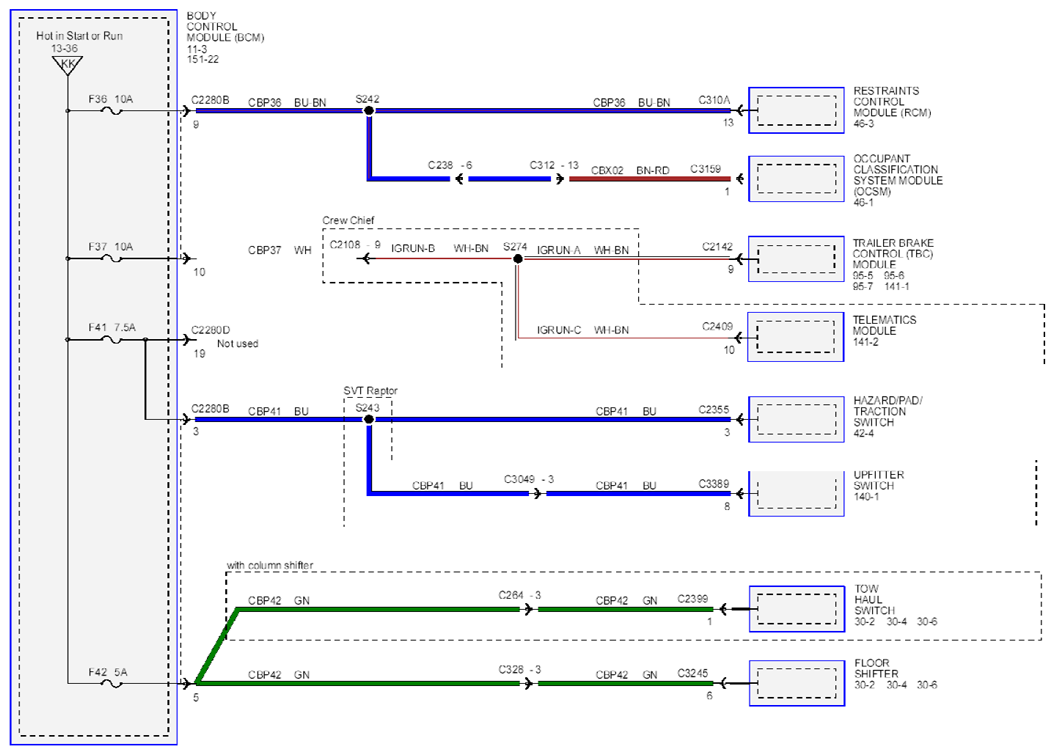

Fig 1: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (1 Of 6)
Courtesy of FORD MOTOR CO.
Fig 2: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (2 Of 6)
Courtesy of FORD MOTOR CO.
Fig 3: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (3 Of 6)
Courtesy of FORD MOTOR CO.
Fig 4: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (4 Of 6)
Courtesy of FORD MOTOR CO.
Fig 5: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (5 Of 6)
Courtesy of FORD MOTOR CO.
Fig 6: Power Distribution BCM Circuit Diagram - F36, F37, F41, F42 (6 Of 6)
