WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

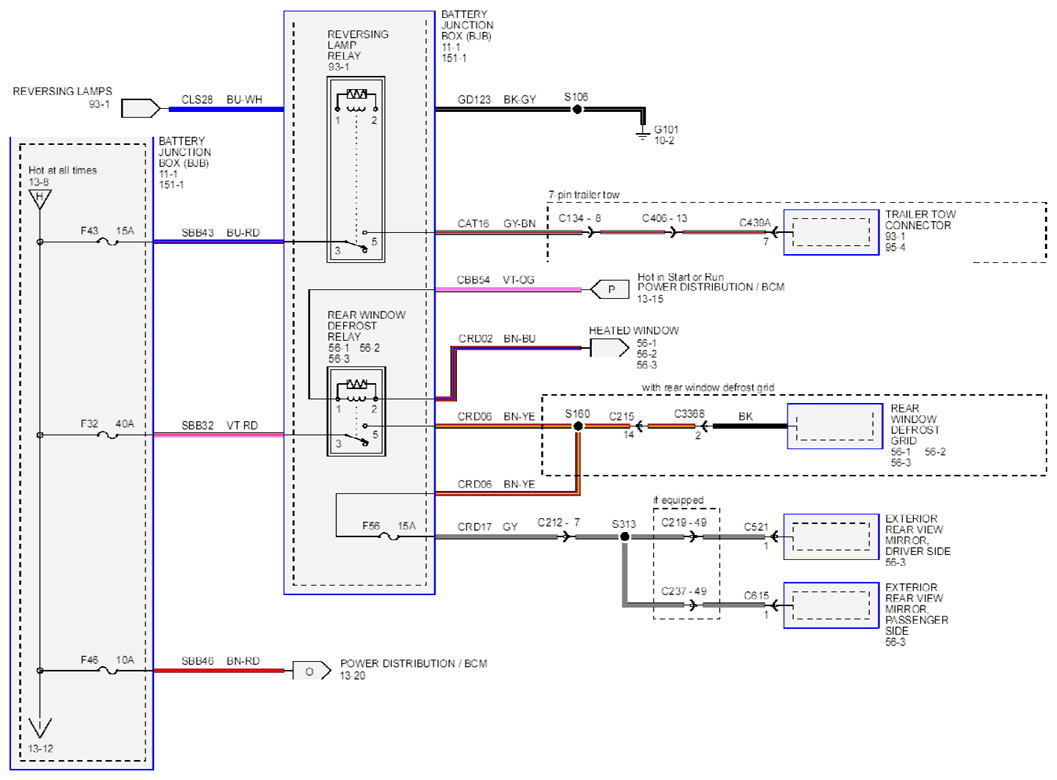

Fig 1: Power Distribution BCM Circuit Diagram - F32, F43, F46, F56 (1 Of 3)
Courtesy of FORD MOTOR CO.

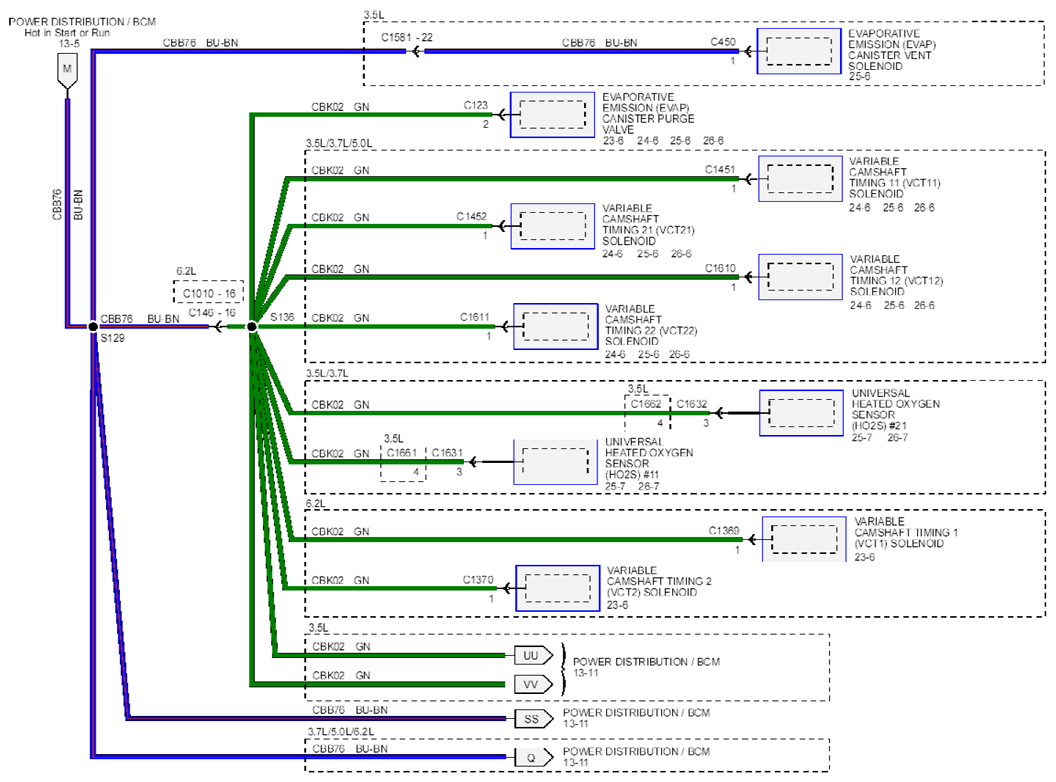

Fig 2: Power Distribution BCM Circuit Diagram - F32, F43, F46, F56 (2 Of 3)
Courtesy of FORD MOTOR CO.

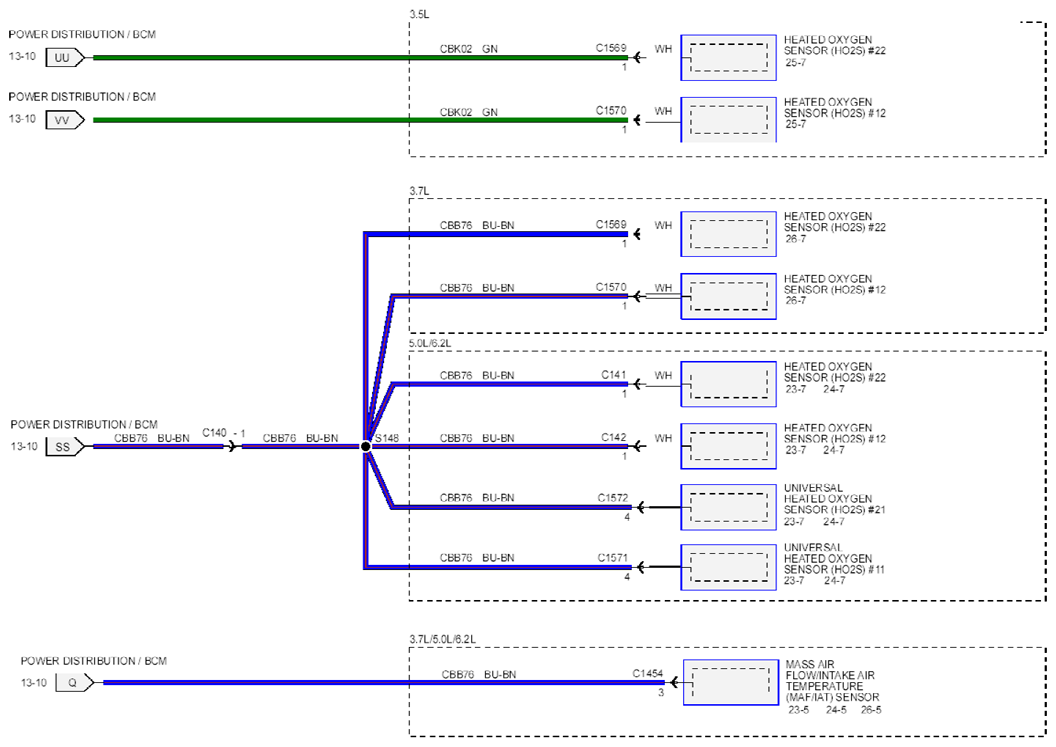

Fig 3: Power Distribution BCM Circuit Diagram - F32, F43, F46, F56 (3 Of 3)
