Fig 1: Power Distribution BCM Circuit Diagram - F32, F38, F48 (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Power Distribution BCM Circuit Diagram - F32, F38, F48 (2 Of 3)
Courtesy of FORD MOTOR CO.

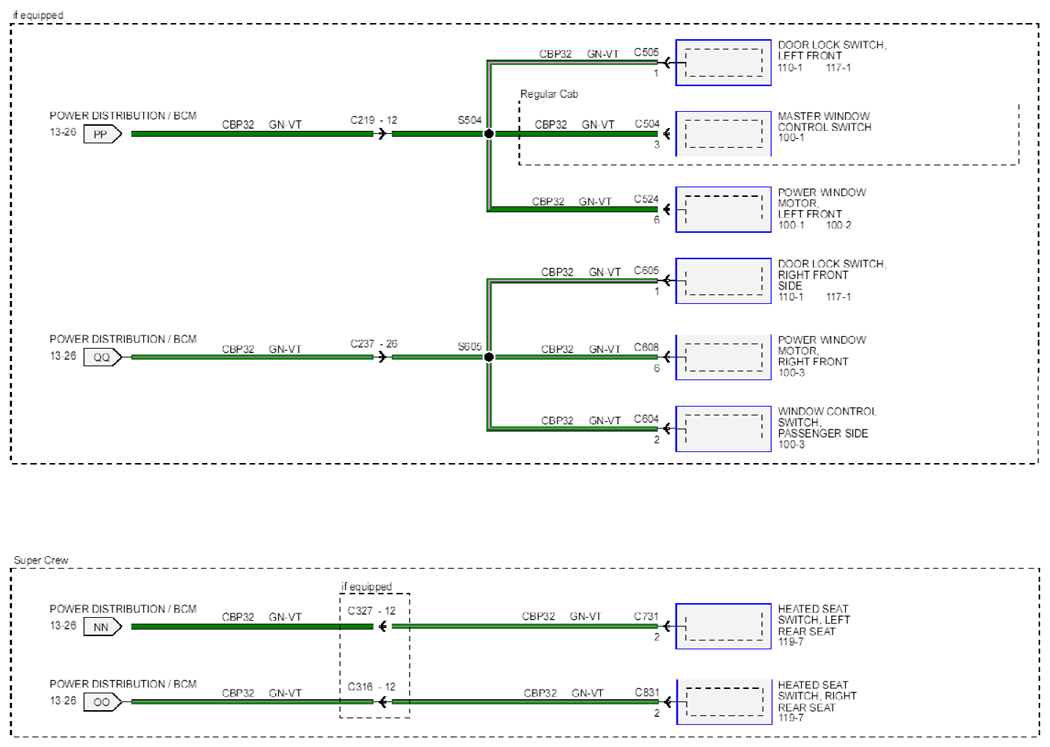

Fig 3: Power Distribution BCM Circuit Diagram - F32, F38, F48 (3 Of 3)
