F31, F42, F67, F71, F73

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

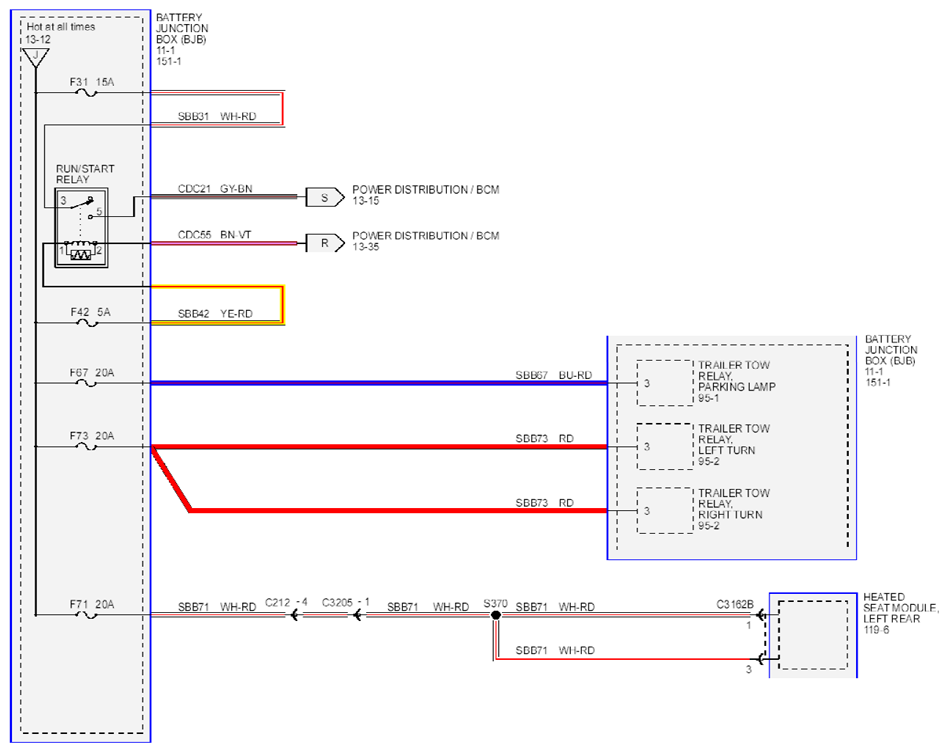

Fig 1: Power Distribution BCM Circuit Diagram (F31, F42, F67, F71, F73)
G07907042Courtesy of FORD MOTOR CO.
