Power Distribution_BCM: F27

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

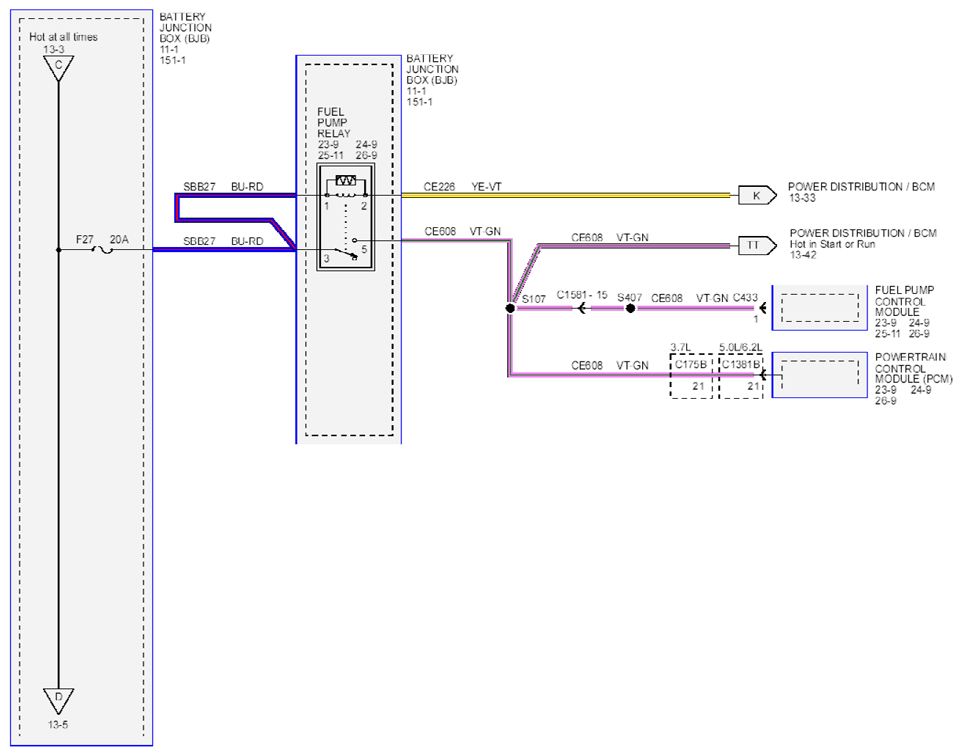

Fig 1: Power Distribution BCM Circuit Diagram (F27)
G07907032Courtesy of FORD MOTOR CO.
