F26, F33, F34, F75, F76, F77, F78

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

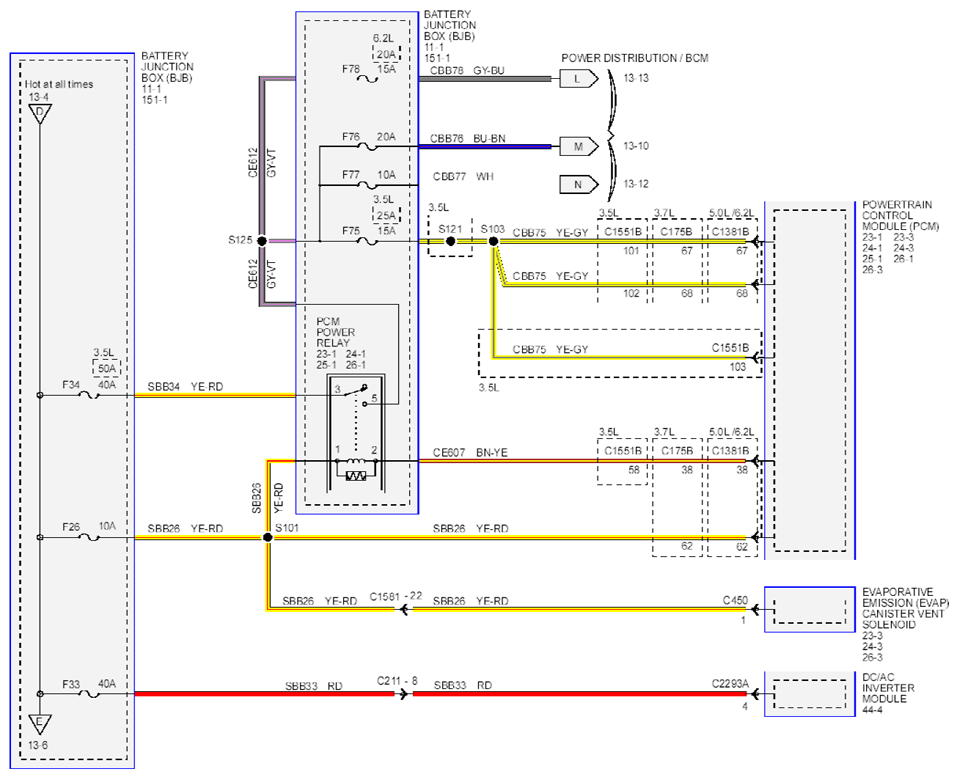

Fig 1: Power Distribution BCM Circuit Diagram (F26, F33, F34, F75, F76, F77, F78)
G07907033Courtesy of FORD MOTOR CO.
