F11, F13, F14, F17, F20, F21, F22

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

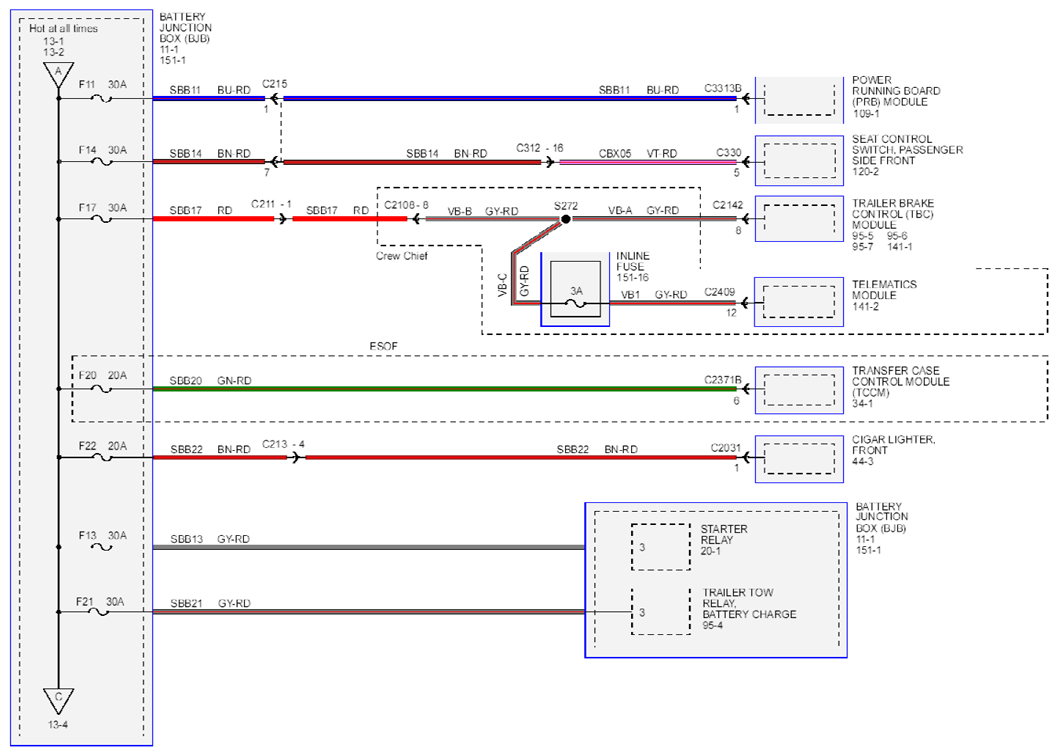

Fig 1: Power Distribution BCM Circuit Diagram (F11, F13, F14, F17, F20, F21, F22)
G07907031Courtesy of FORD MOTOR CO.
