Section 196 (OEM Wiring Diagrams - F150)
>>
Passive Anti-Theft System
Passive Anti-Theft System
WARNING:
This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

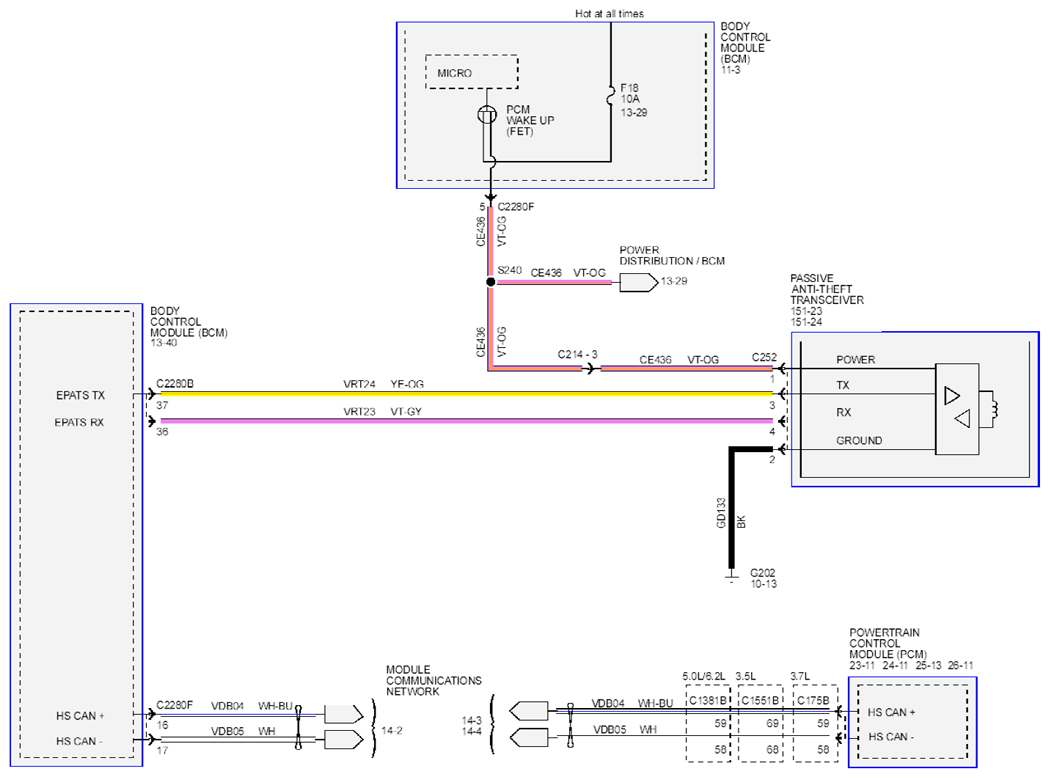

Fig 1: Passive Anti-Theft System Circuit Diagram
Courtesy of FORD MOTOR CO.
