With 4 X 2

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

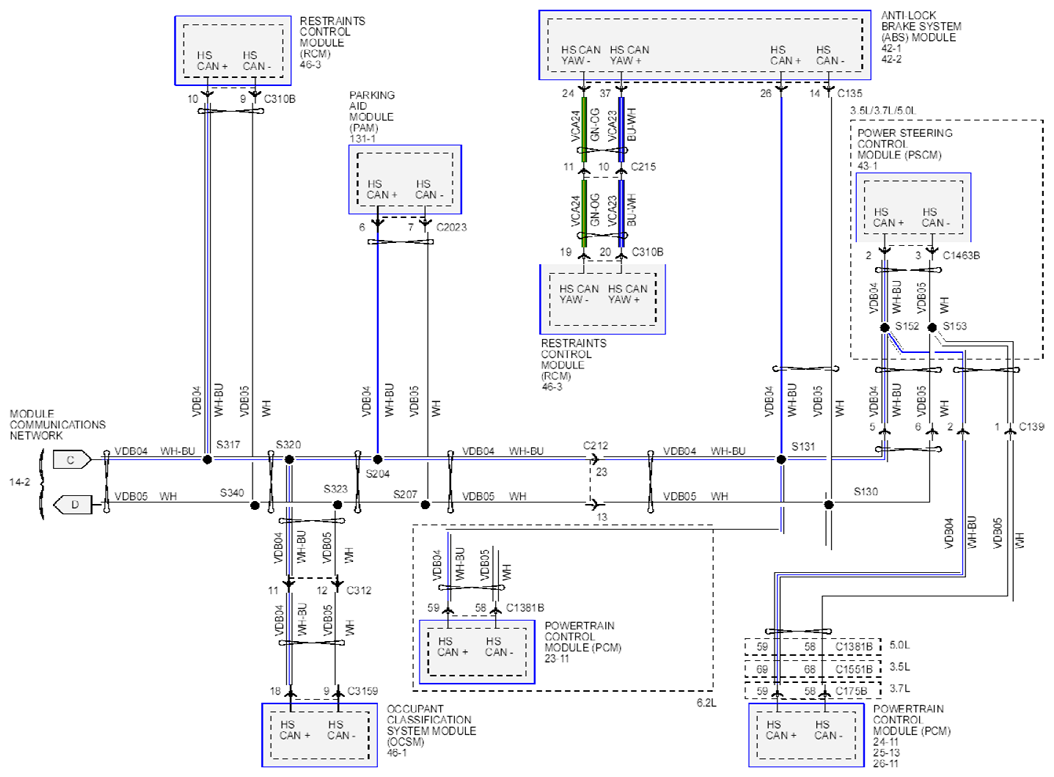

Fig 1: Module Communications Network Circuit Diagram (With 4 X 2)
G07907073Courtesy of FORD MOTOR CO.
