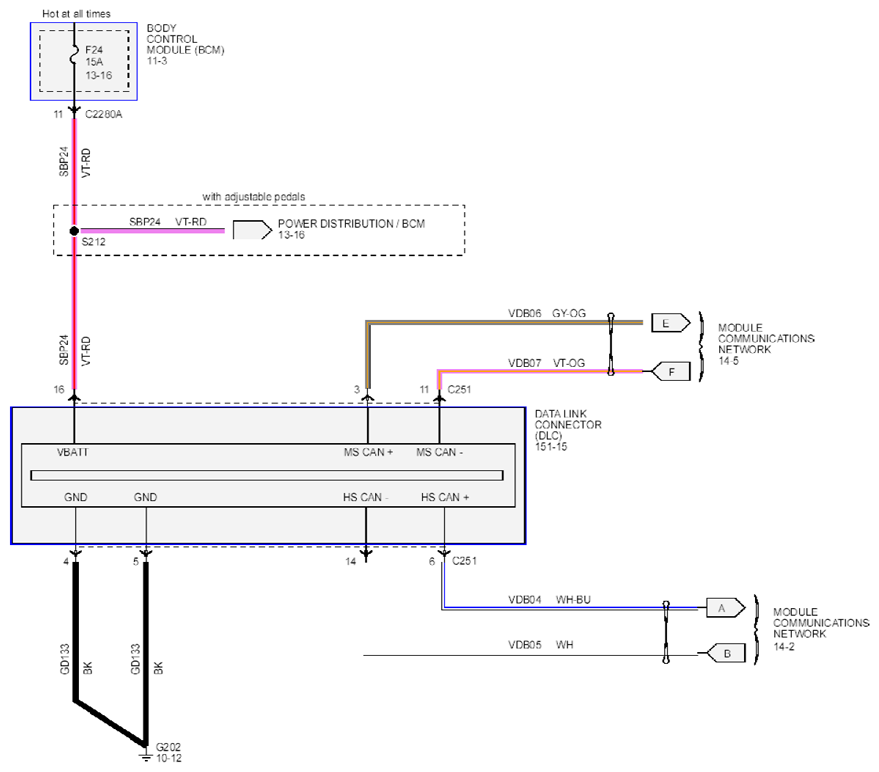

Fig 1: Module Communications Network Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

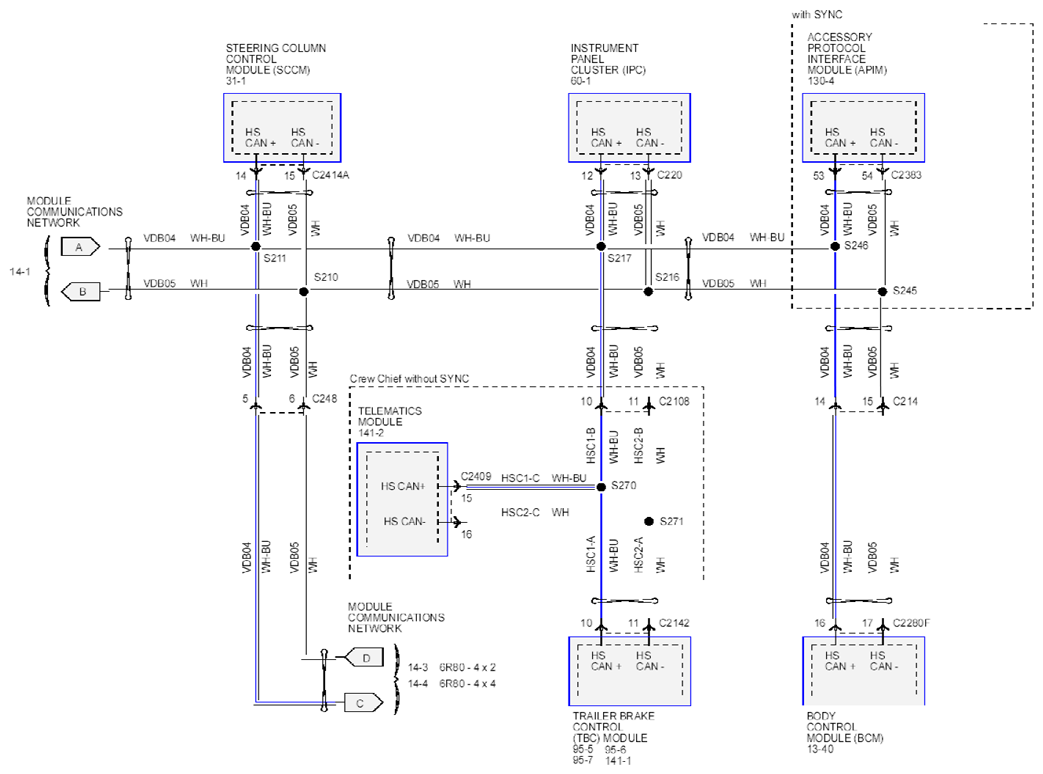

Fig 2: Module Communications Network Circuit Diagram (2 Of 2)
