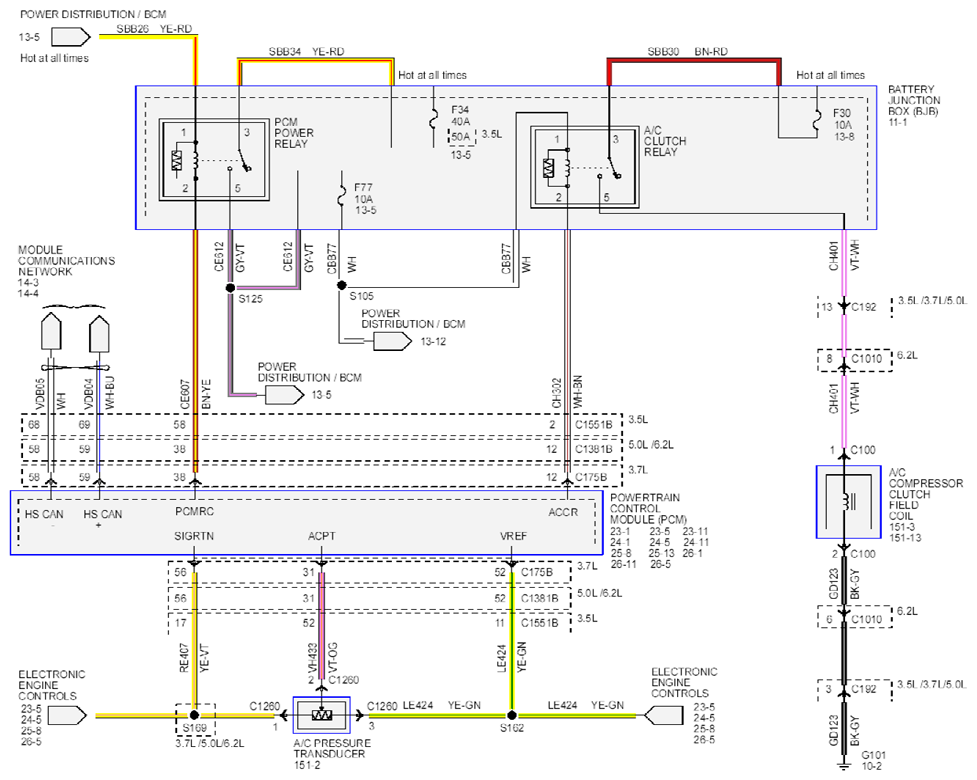

Fig 1: Manual Climate Control System Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

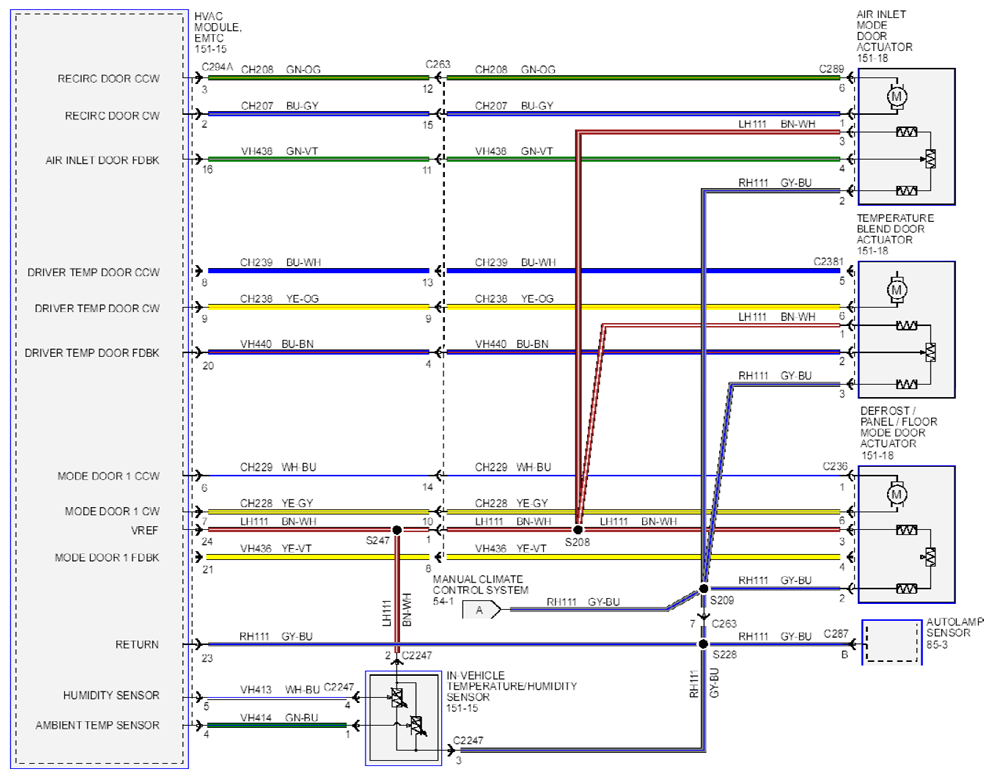

Fig 2: Manual Climate Control System Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

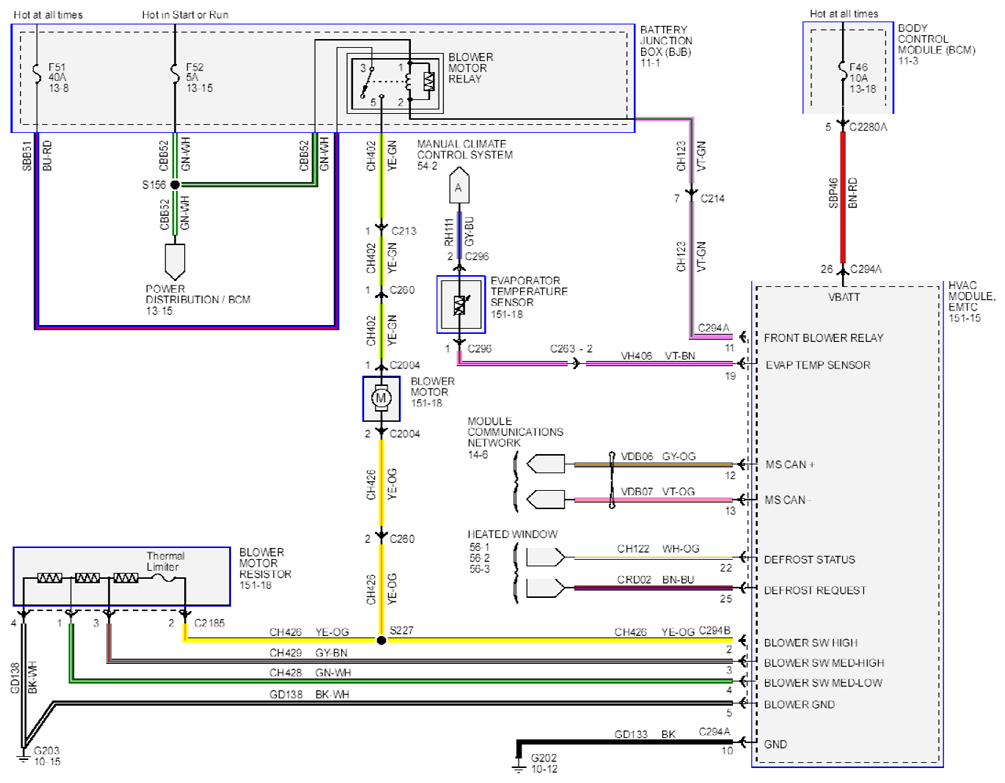

Fig 3: Manual Climate Control System Circuit Diagram (3 Of 3)
