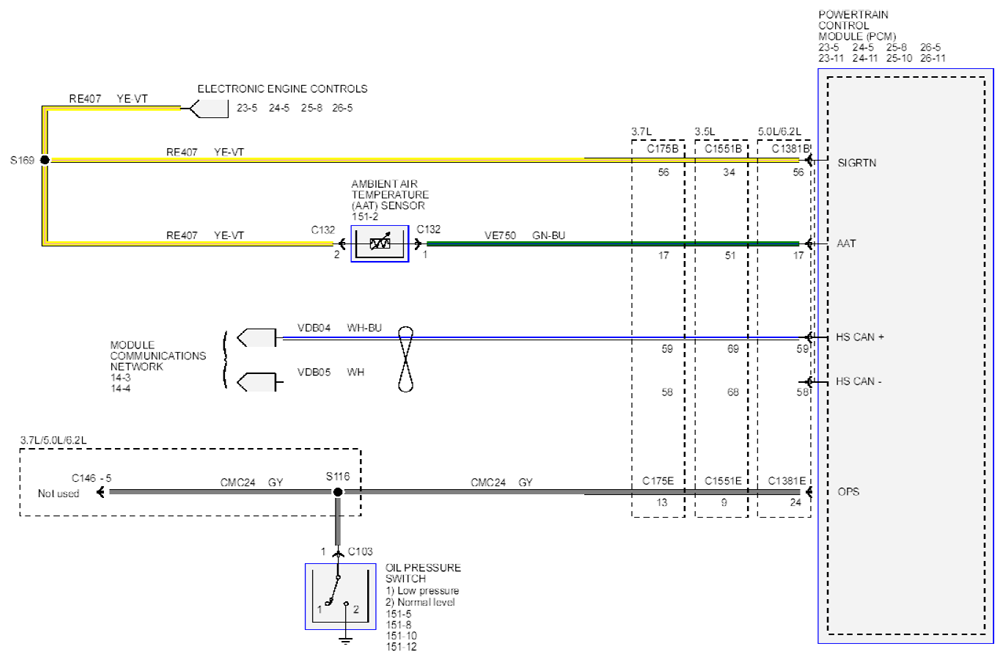

Fig 1: Instrument Cluster Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

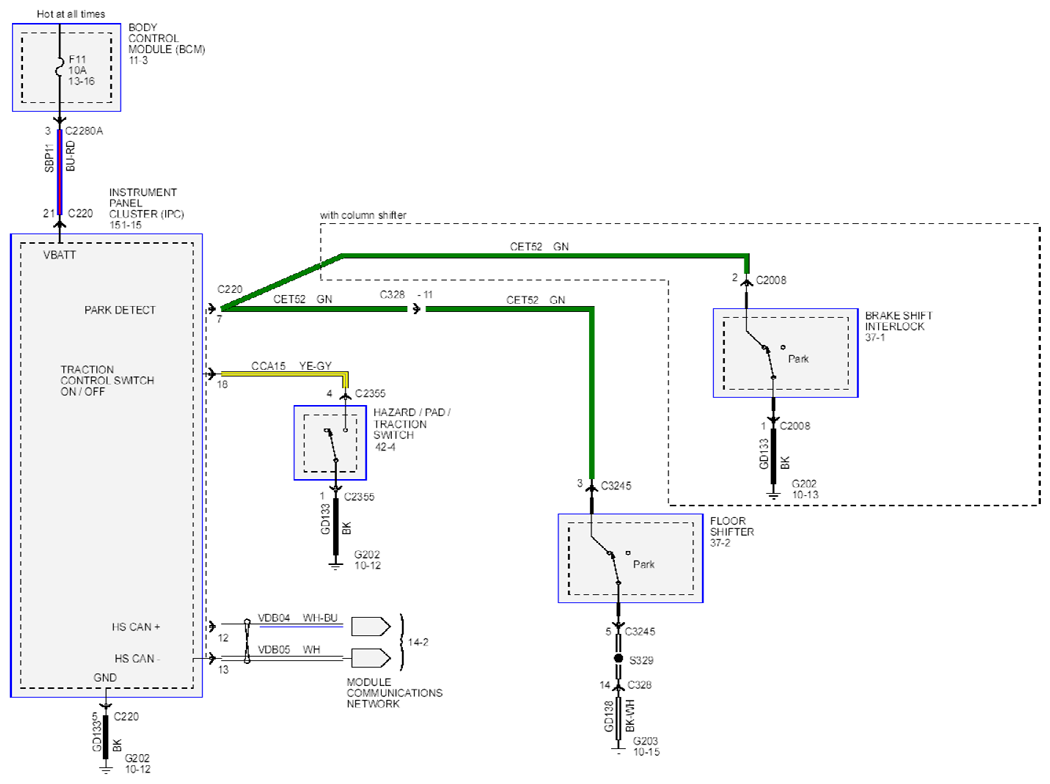

Fig 2: Instrument Cluster Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

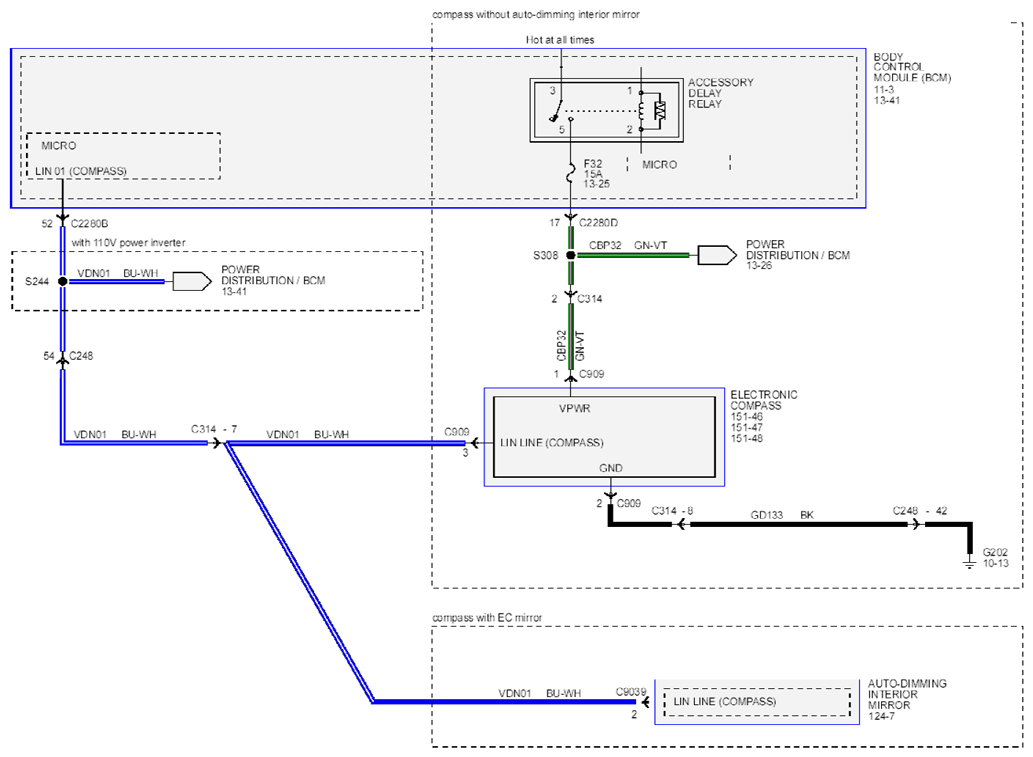

Fig 3: Instrument Cluster Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

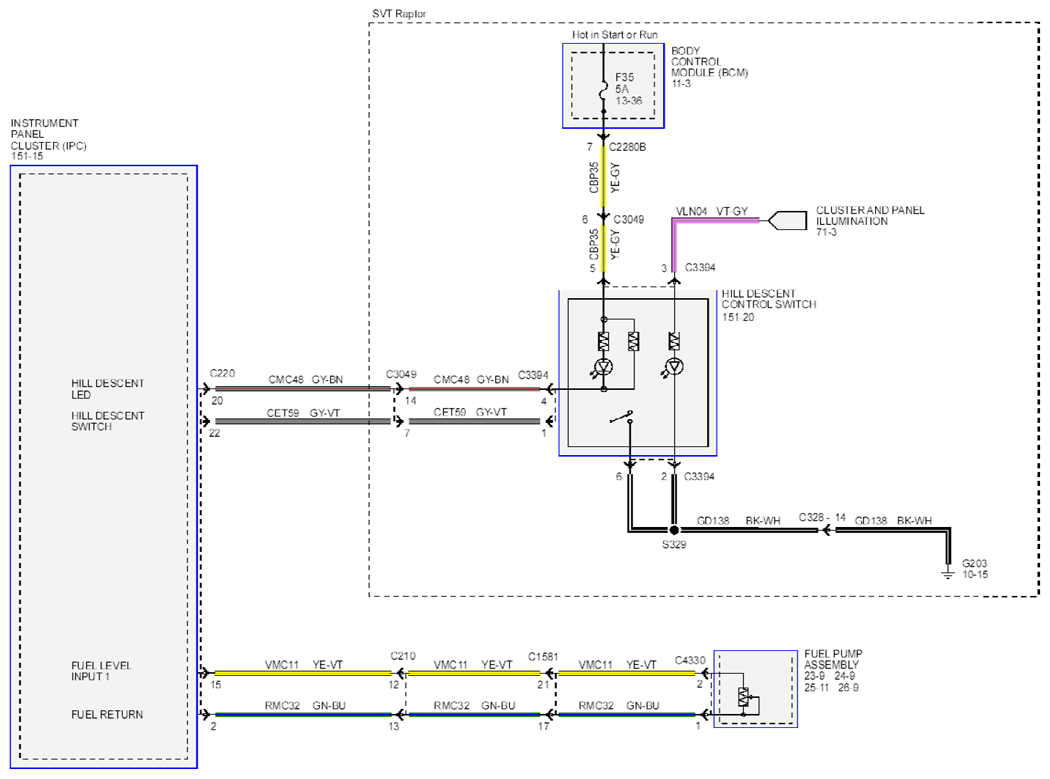

Fig 4: Instrument Cluster Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

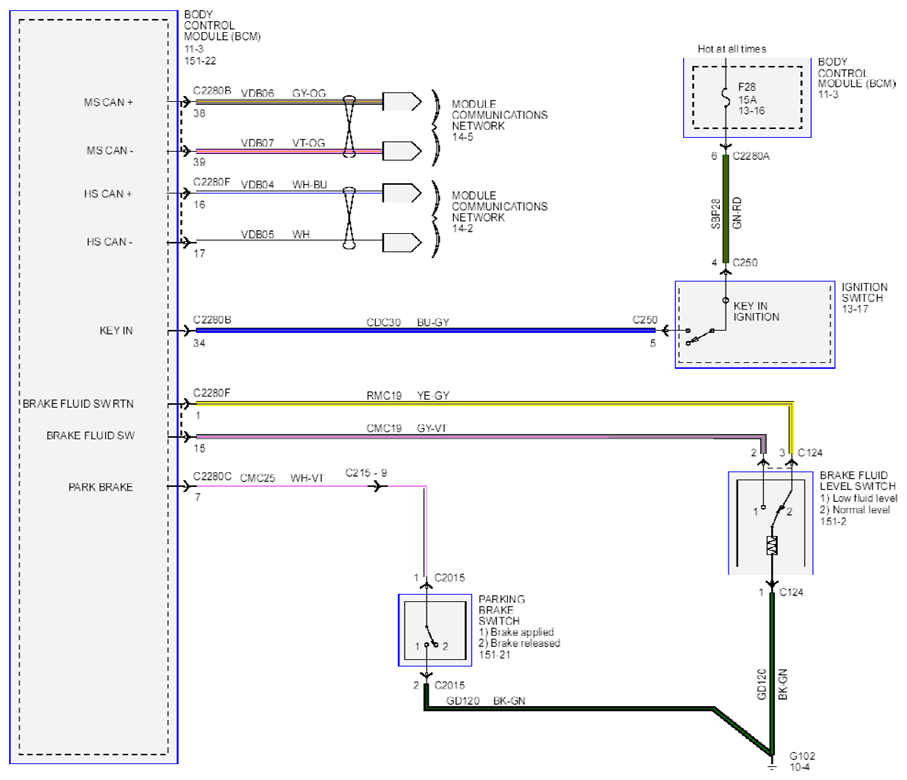

Fig 5: Instrument Cluster Circuit Diagram (5 Of 5)
