3-Button Message Center

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

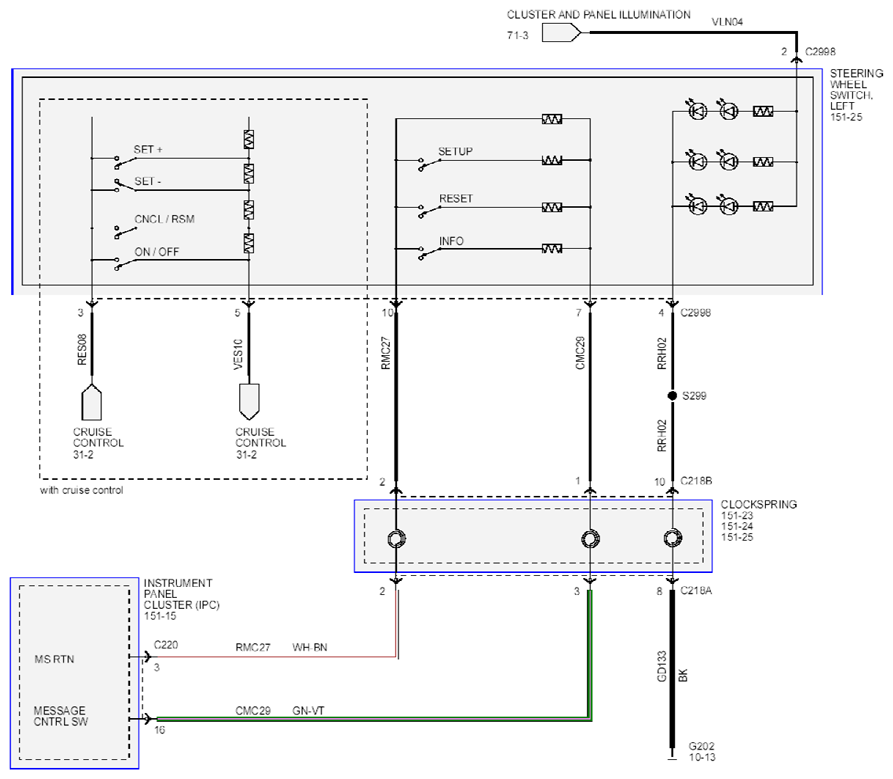

Fig 1: Instrument Cluster Circuit Diagram (3-Button Message Center)
G07907176Courtesy of FORD MOTOR CO.
