With 110V Power Inverter

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

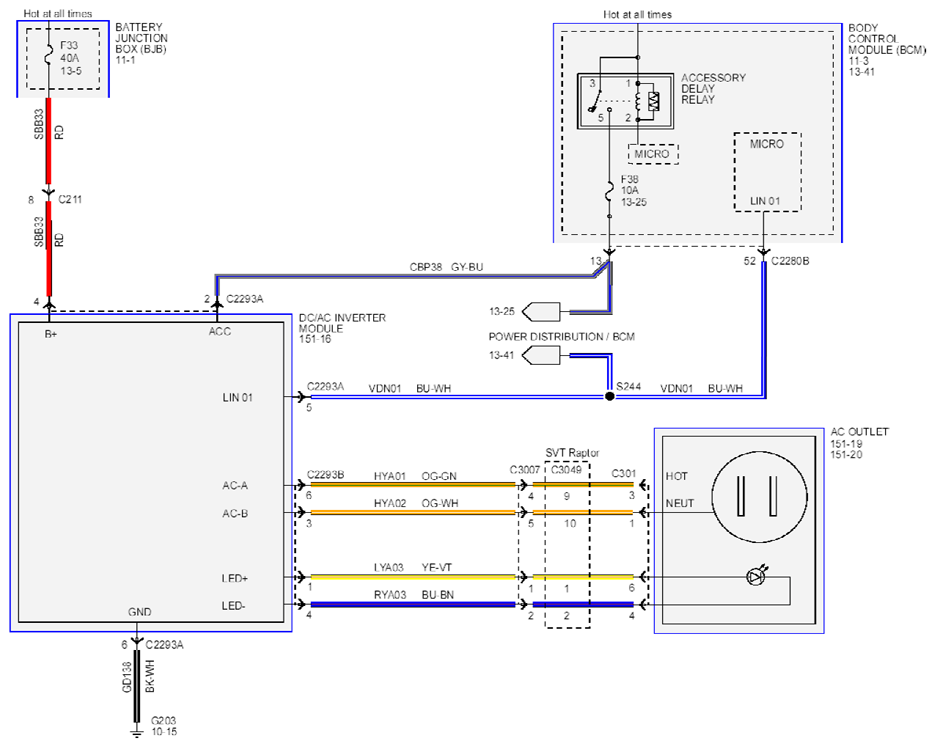

Fig 1: Horn Cigar Lighter Circuit Diagram - With 110V Power Inverter
G07907151Courtesy of FORD MOTOR CO.
