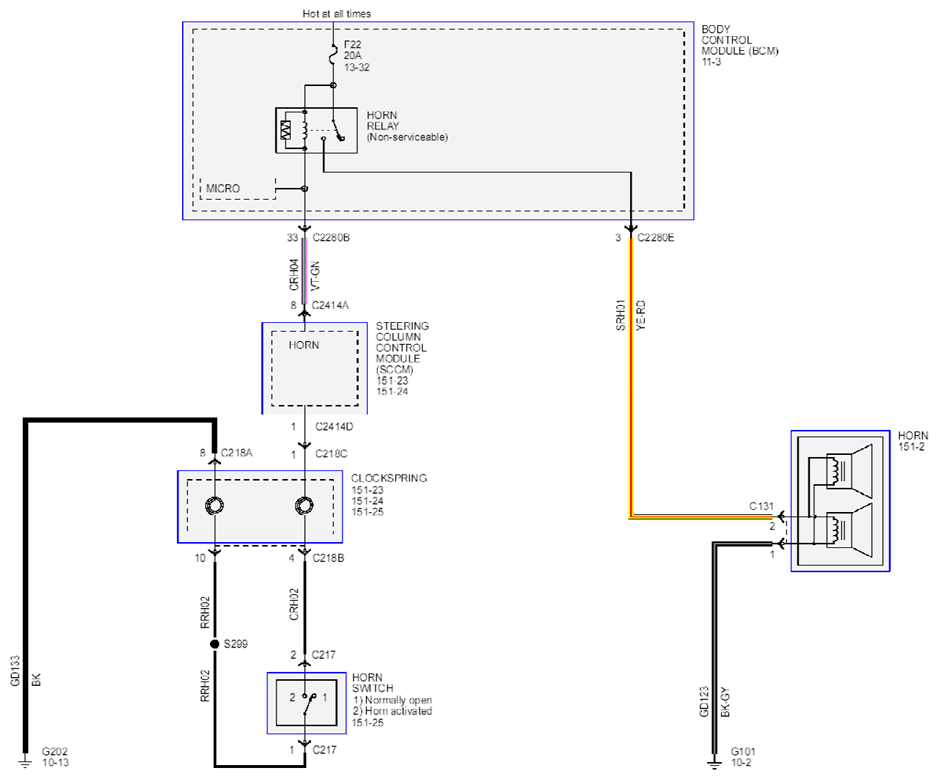

Fig 1: Horn Cigar Lighter Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

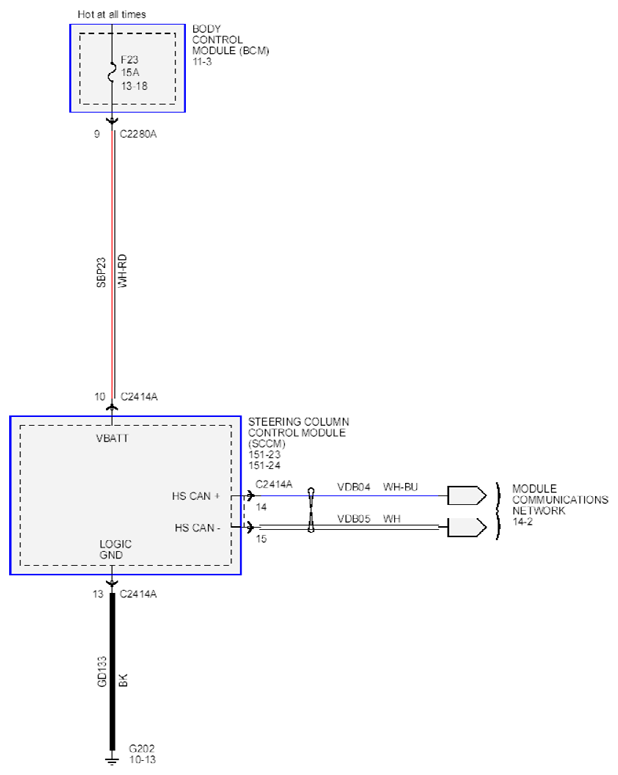

Fig 2: Horn Cigar Lighter Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Horn Cigar Lighter Circuit Diagram (3 Of 3)
