Section 196 (OEM Wiring Diagrams - F150)
>>
Ford Work Solutions
>>
In-Dash Computer With Tool Link
In-Dash Computer With Tool Link
WARNING:
This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

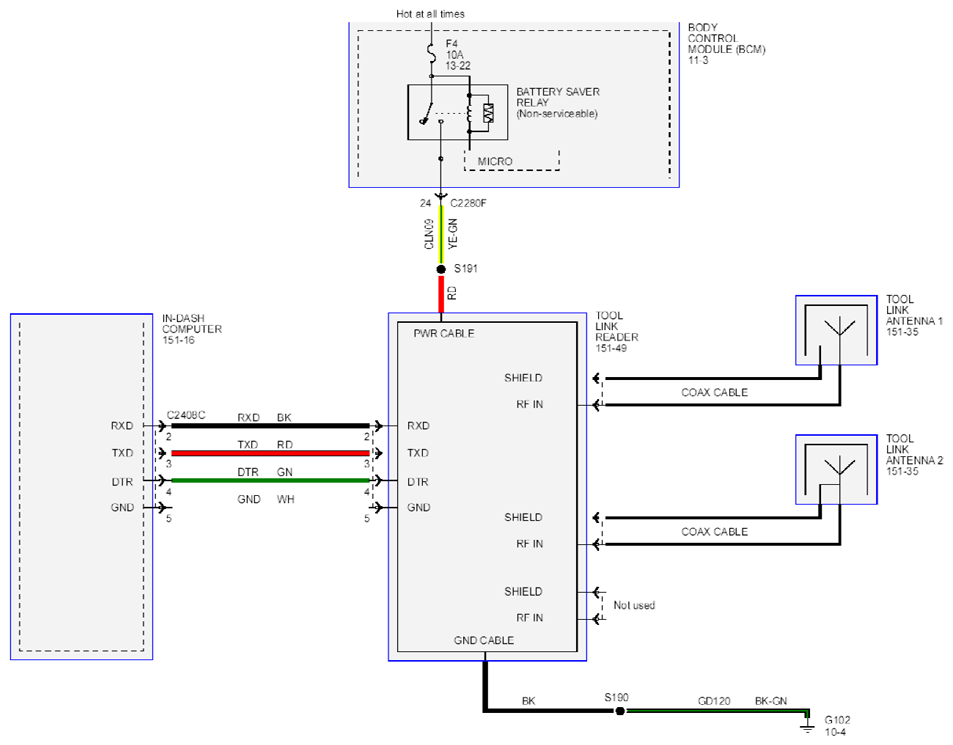

Fig 1: Ford Work Solutions Circuit Diagram - In-Dash Computer With Tool Link
Courtesy of FORD MOTOR CO.
