Electronic Engine Controls-6.2L

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

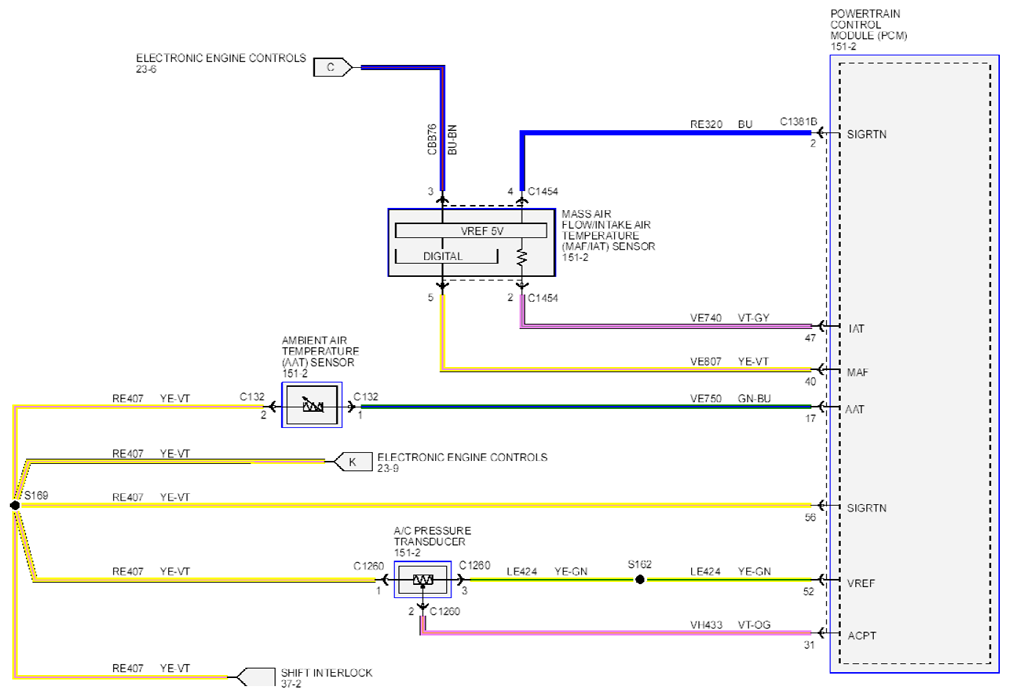

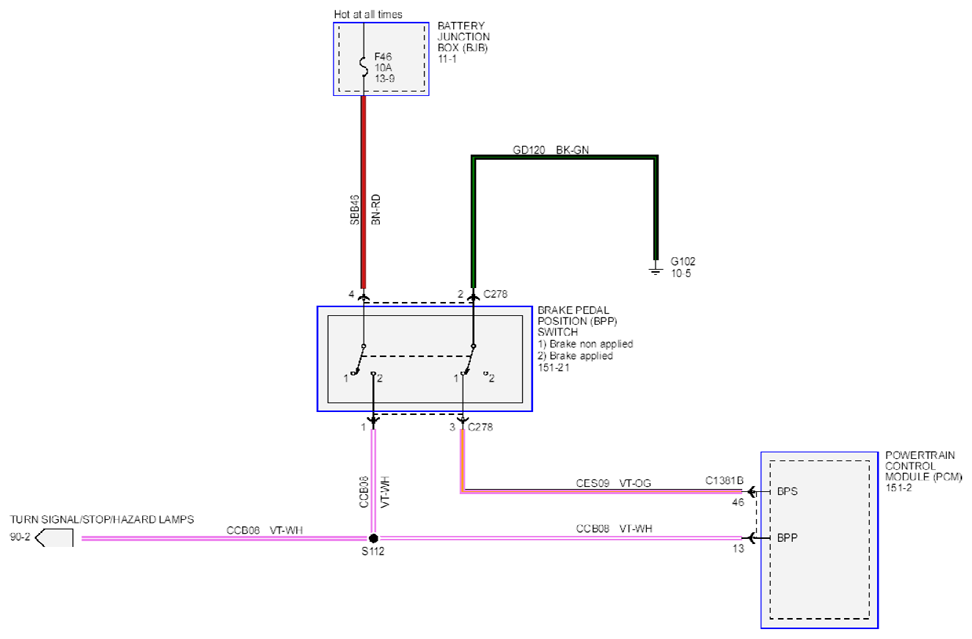

Fig 1: Electronic Engine Controls Circuit Diagram - 6.2L (1 Of 11)

Courtesy of FORD MOTOR CO.

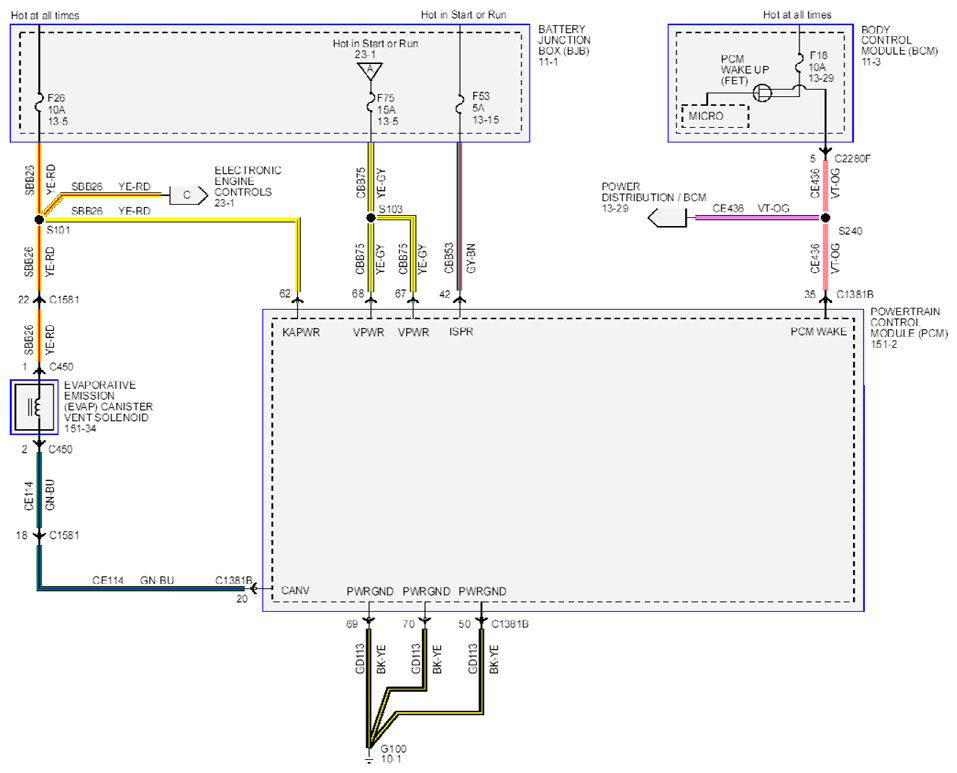

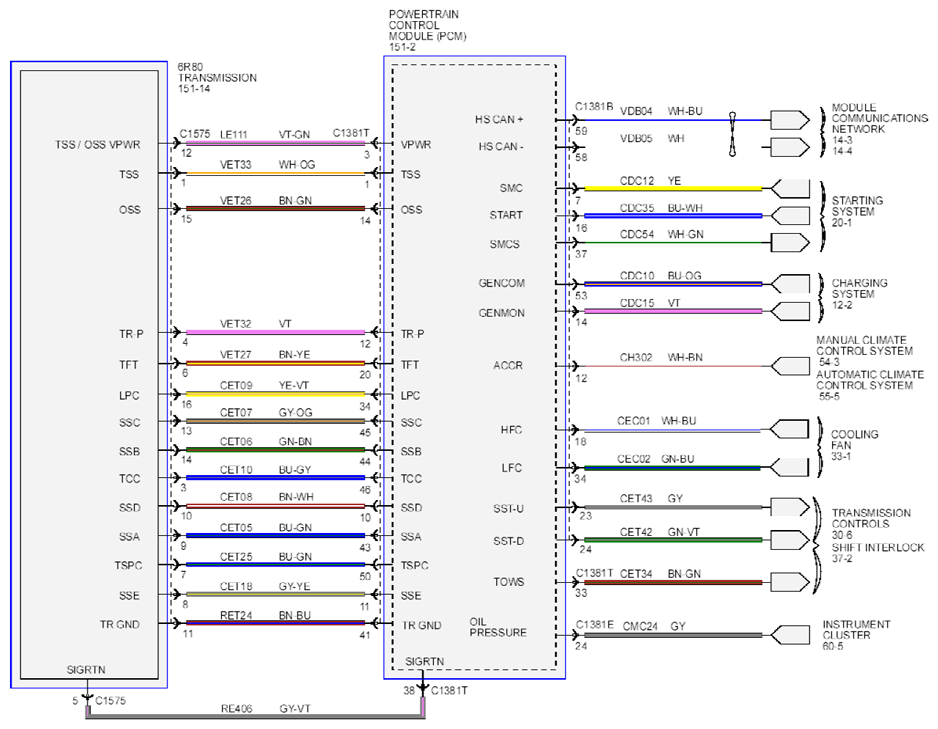

Fig 2: Electronic Engine Controls Circuit Diagram - 6.2L (2 Of 11)

Courtesy of FORD MOTOR CO.

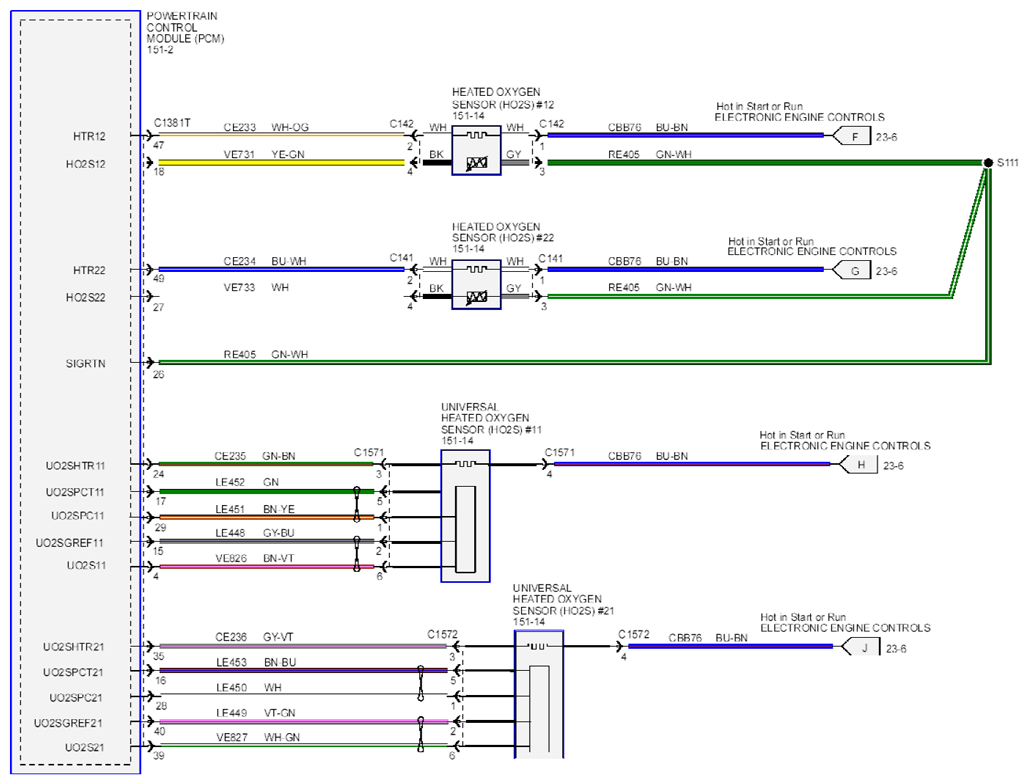

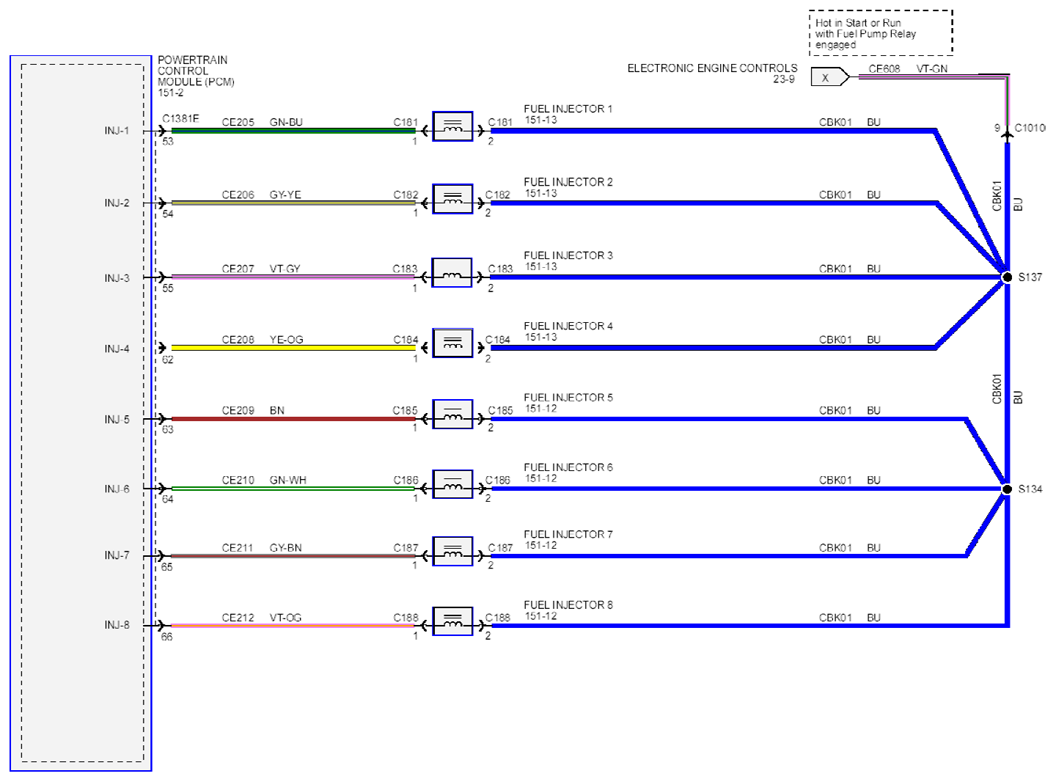

Fig 3: Electronic Engine Controls Circuit Diagram - 6.2L (3 Of 11)

Courtesy of FORD MOTOR CO.

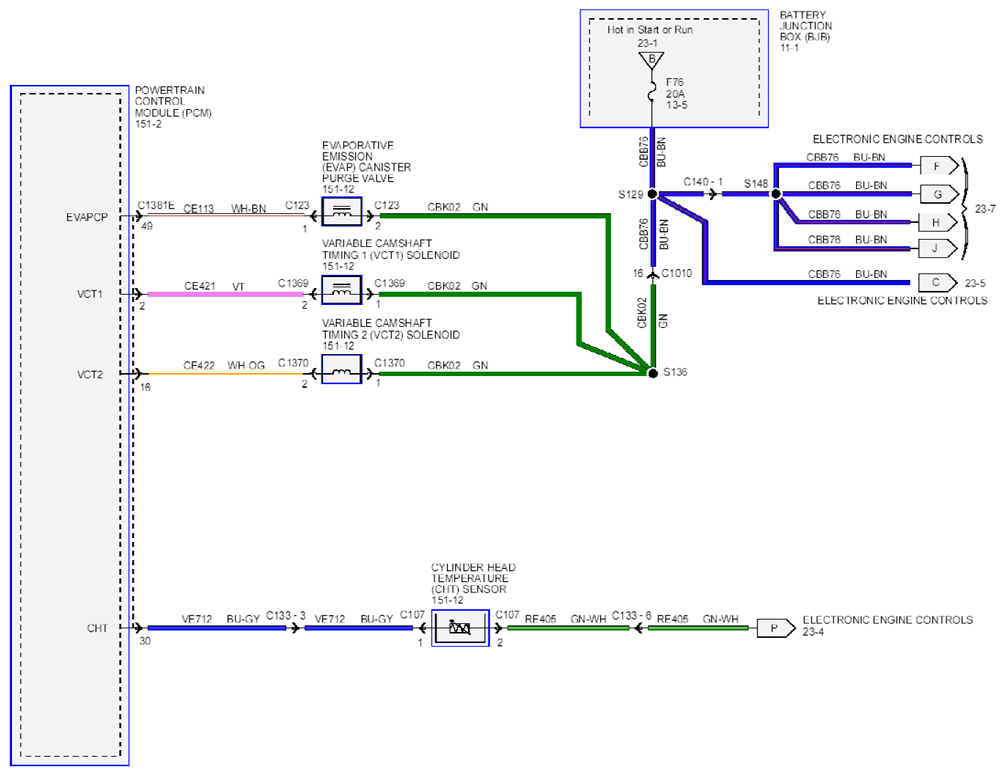

Fig 4: Electronic Engine Controls Circuit Diagram - 6.2L (4 Of 11)

Courtesy of FORD MOTOR CO.

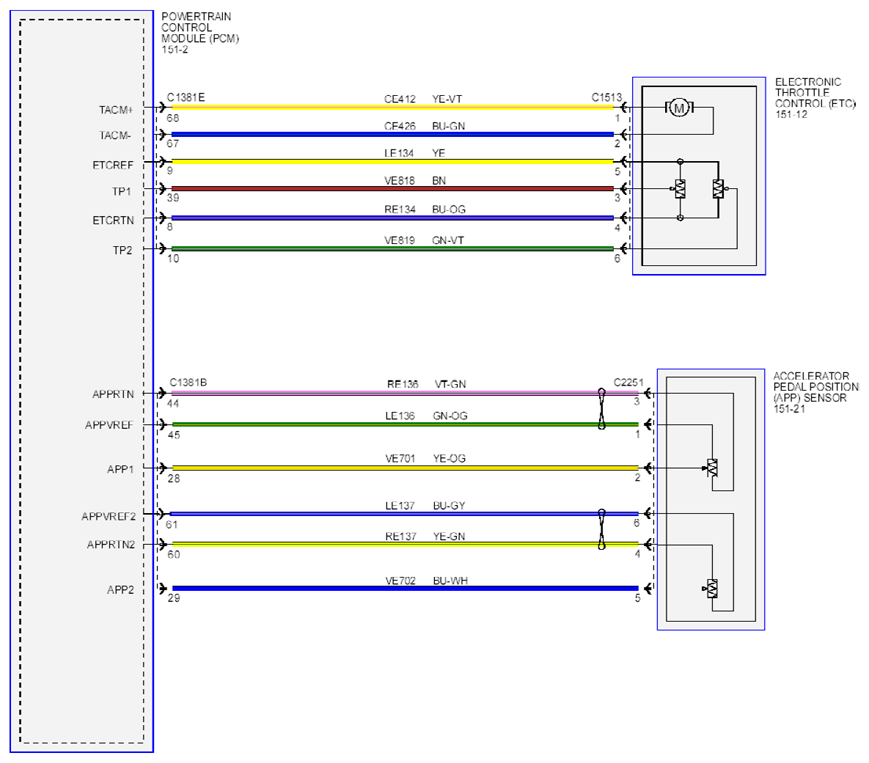

Fig 5: Electronic Engine Controls Circuit Diagram - 6.2L (5 Of 11)

Courtesy of FORD MOTOR CO.

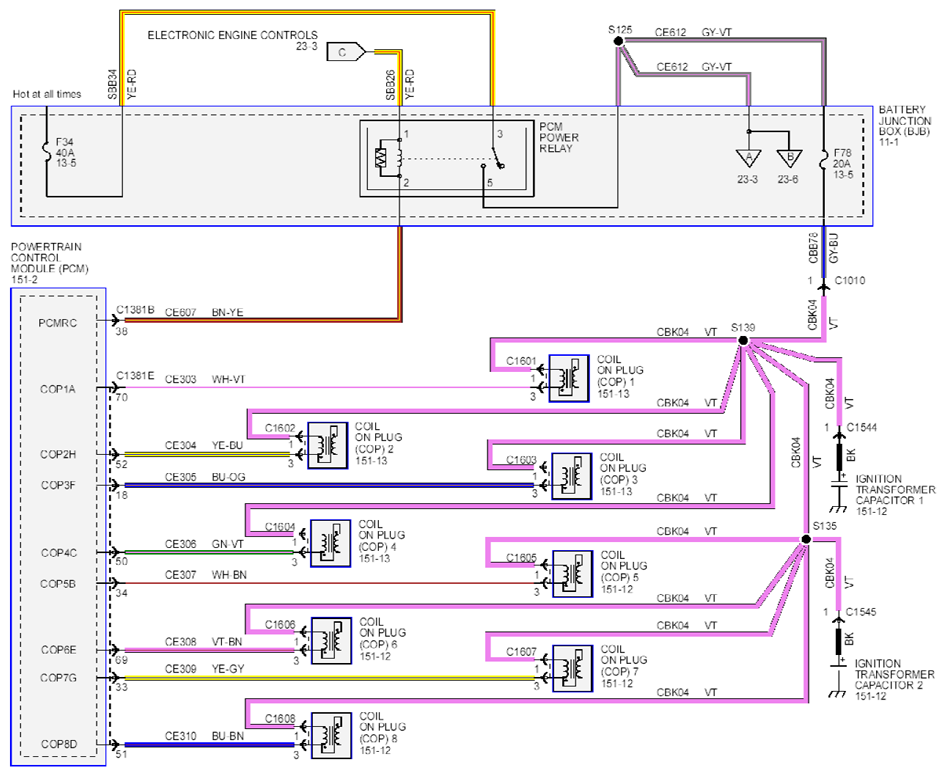

Fig 6: Electronic Engine Controls Circuit Diagram - 6.2L (6 Of 11)

Courtesy of FORD MOTOR CO.

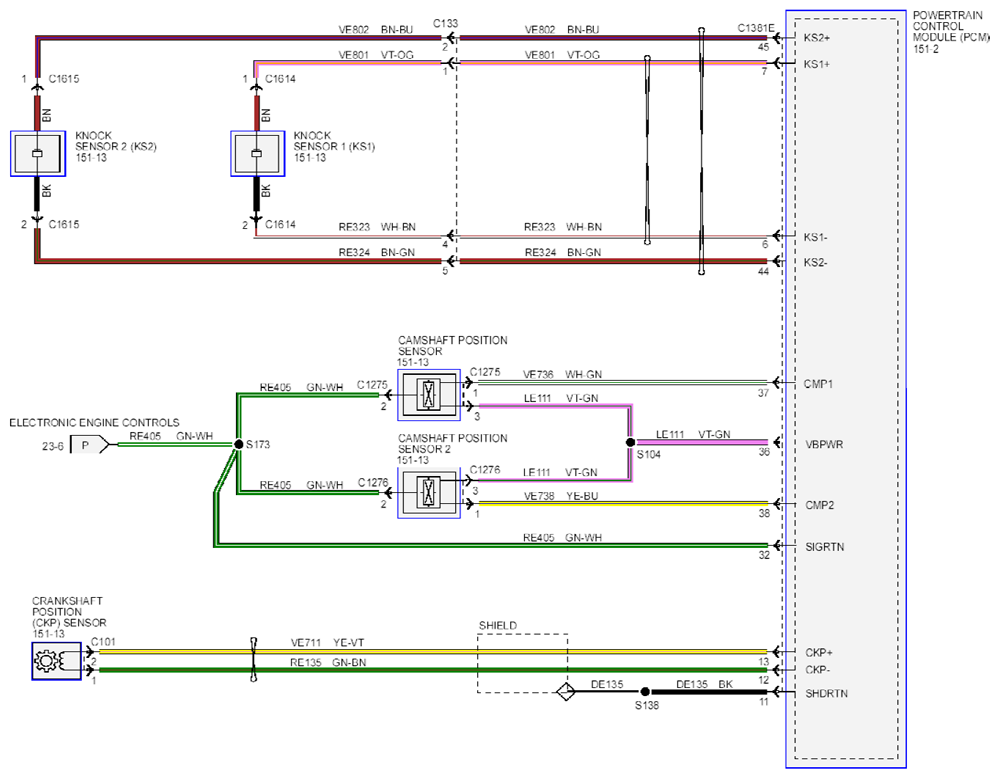

Fig 7: Electronic Engine Controls Circuit Diagram - 6.2L (7 Of 11)

Courtesy of FORD MOTOR CO.

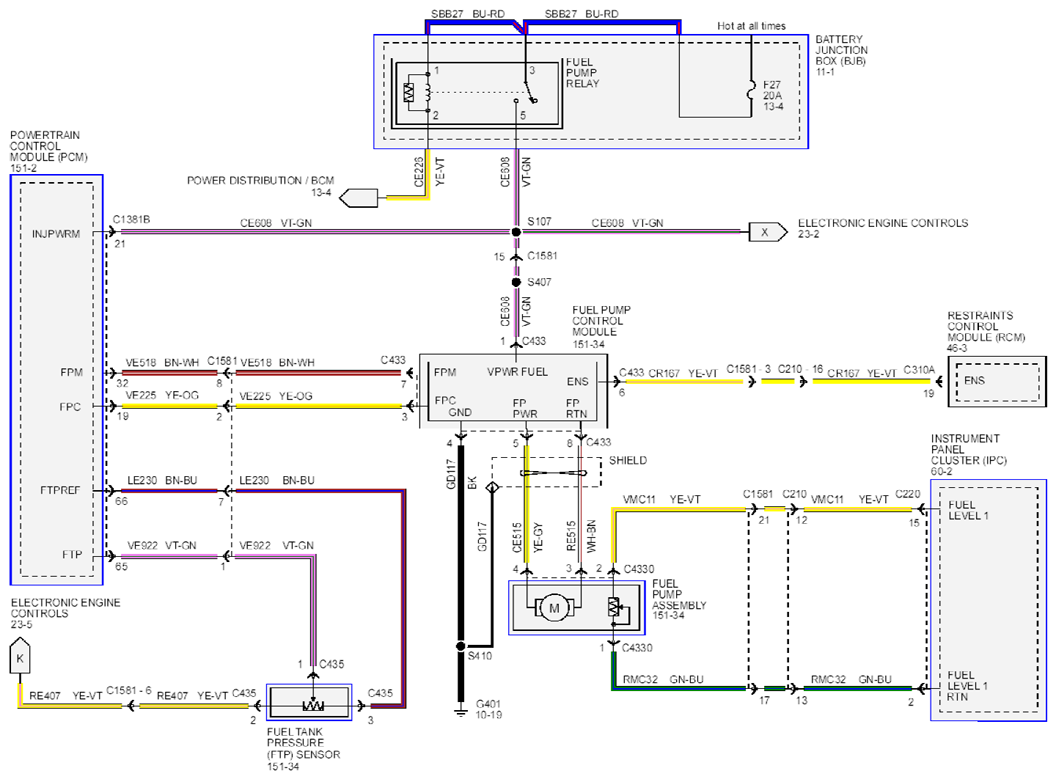

Fig 8: Electronic Engine Controls Circuit Diagram - 6.2L (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Circuit Diagram - 6.2L (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls Circuit Diagram - 6.2L (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls Circuit Diagram - 6.2L (11 Of 11)

Courtesy of FORD MOTOR CO.
