Section 196 (OEM Wiring Diagrams - F150)
>>
Customer Access
>>
SVT Raptor
SVT Raptor
WARNING:
This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

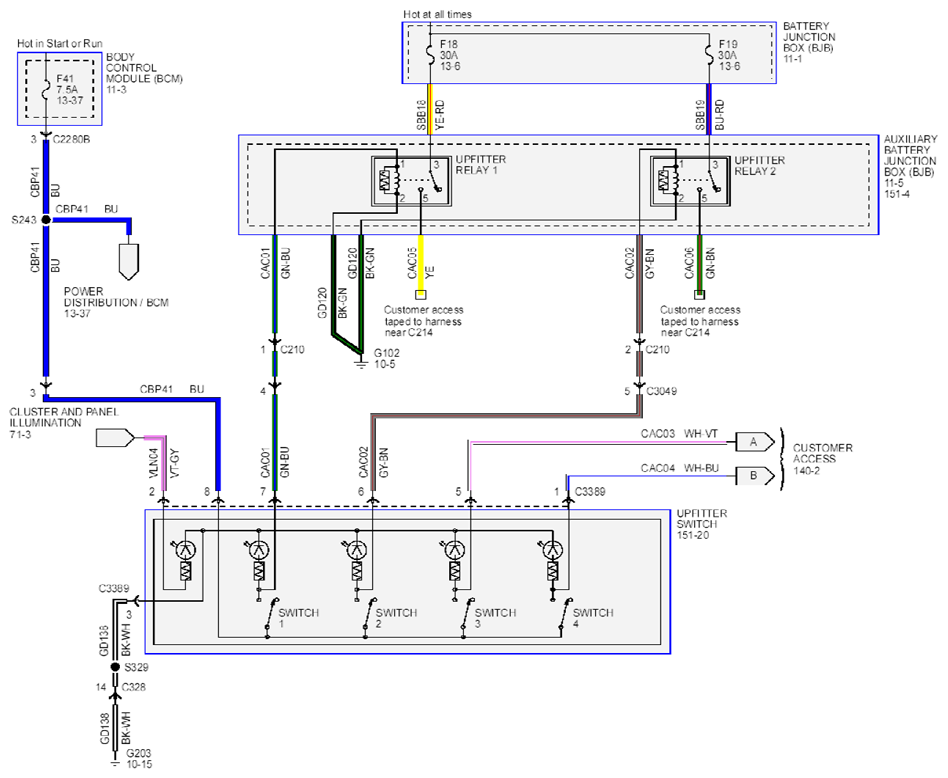

Fig 1: Customer Access Circuit Diagram - SVT Raptor (1 Of 2)
Courtesy of FORD MOTOR CO.

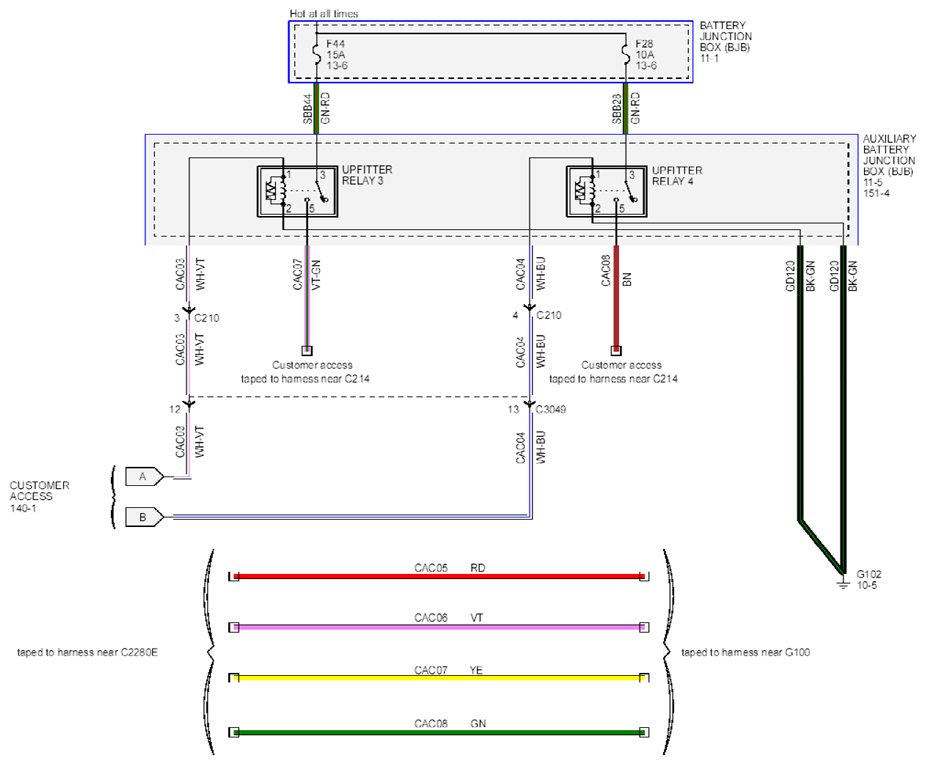

Fig 2: Customer Access Circuit Diagram - SVT Raptor (2 Of 2)
Courtesy of FORD MOTOR CO.
