Cruise Control: 3.5L

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

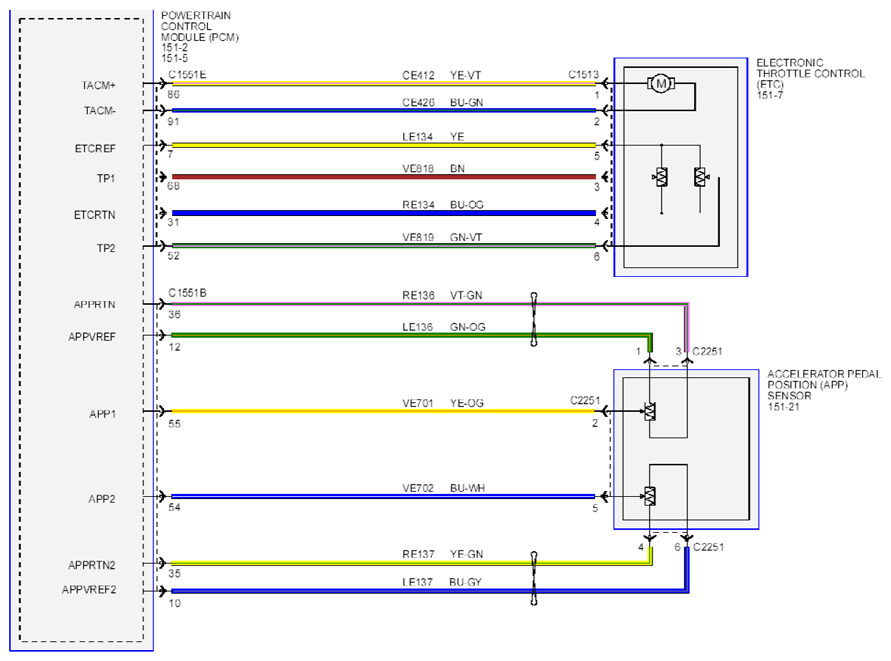

Fig 1: Cruise Control Circuit Diagram (3.5L)
G07907135Courtesy of FORD MOTOR CO.
