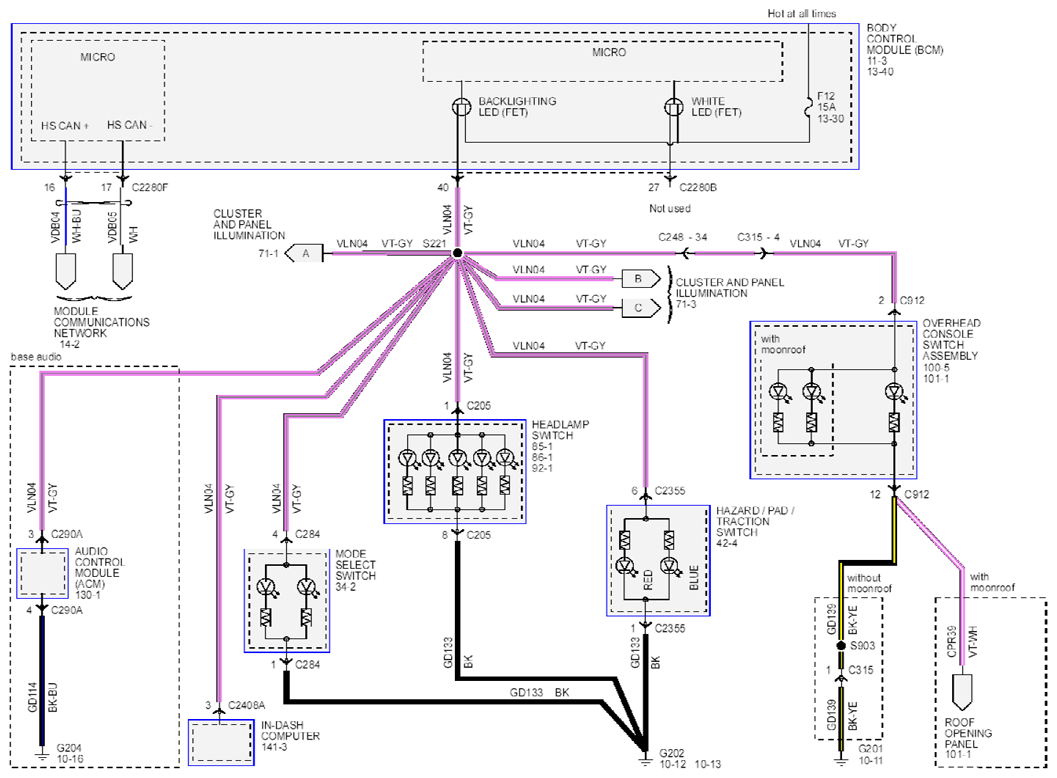

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

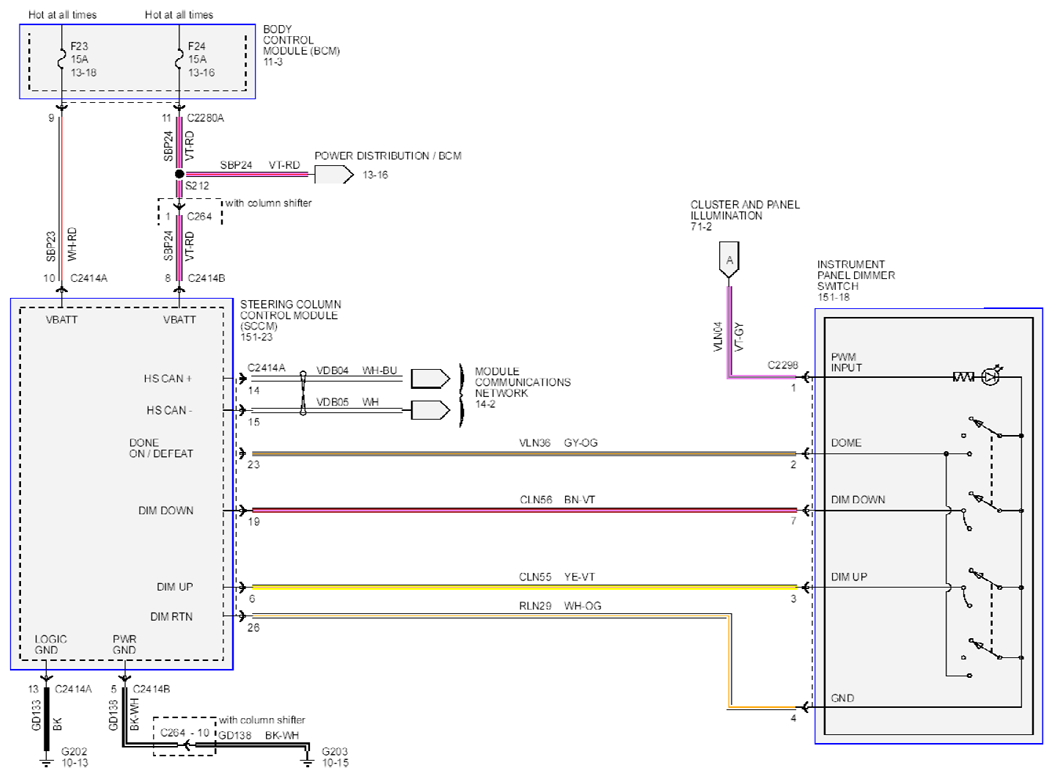

Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

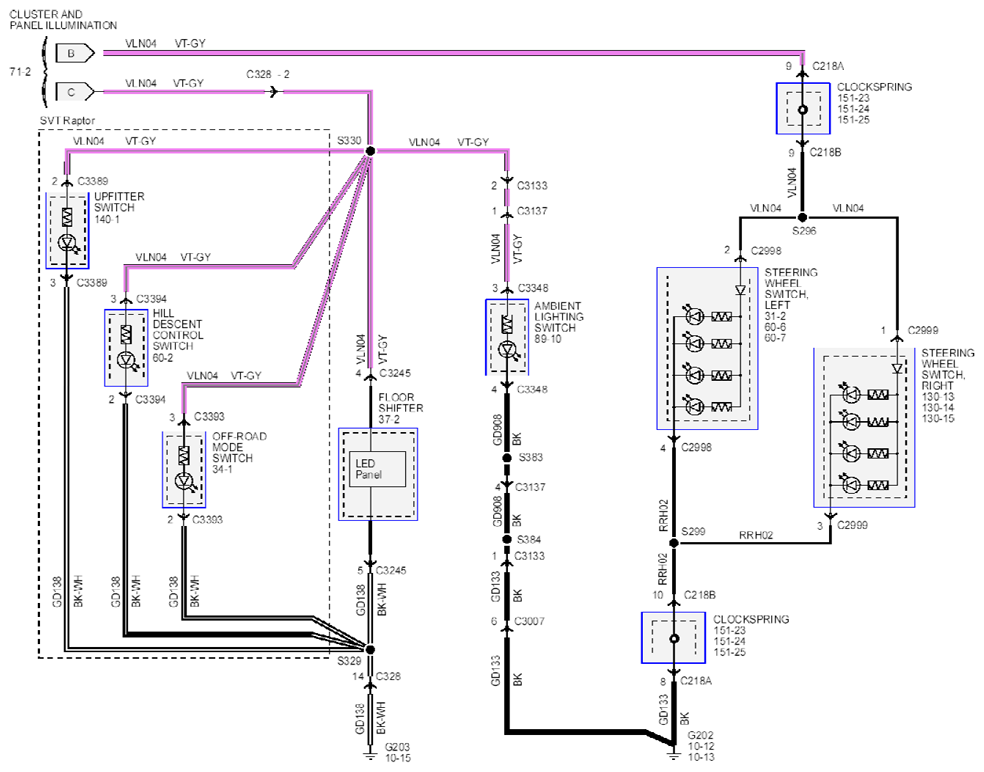

Fig 3: Cluster And Panel Illumination Circuit Diagram (3 Of 3)
