WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

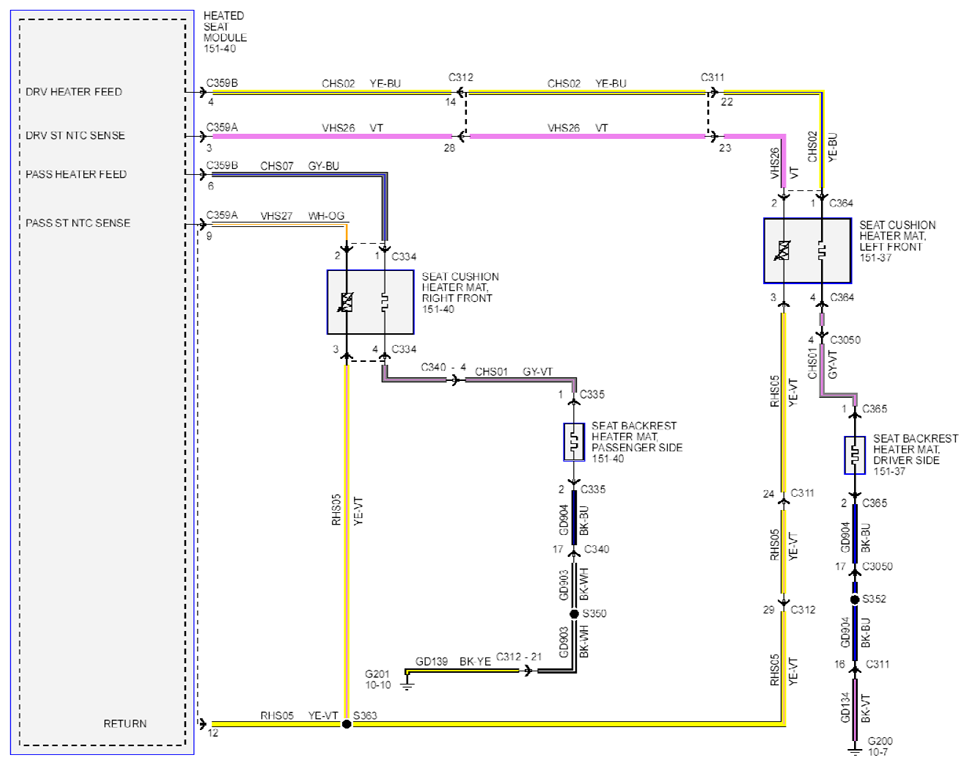

Fig 1: Climate Controlled Seats Circuit Diagram - With Heated Seats (1 Of 2)
Courtesy of FORD MOTOR CO.

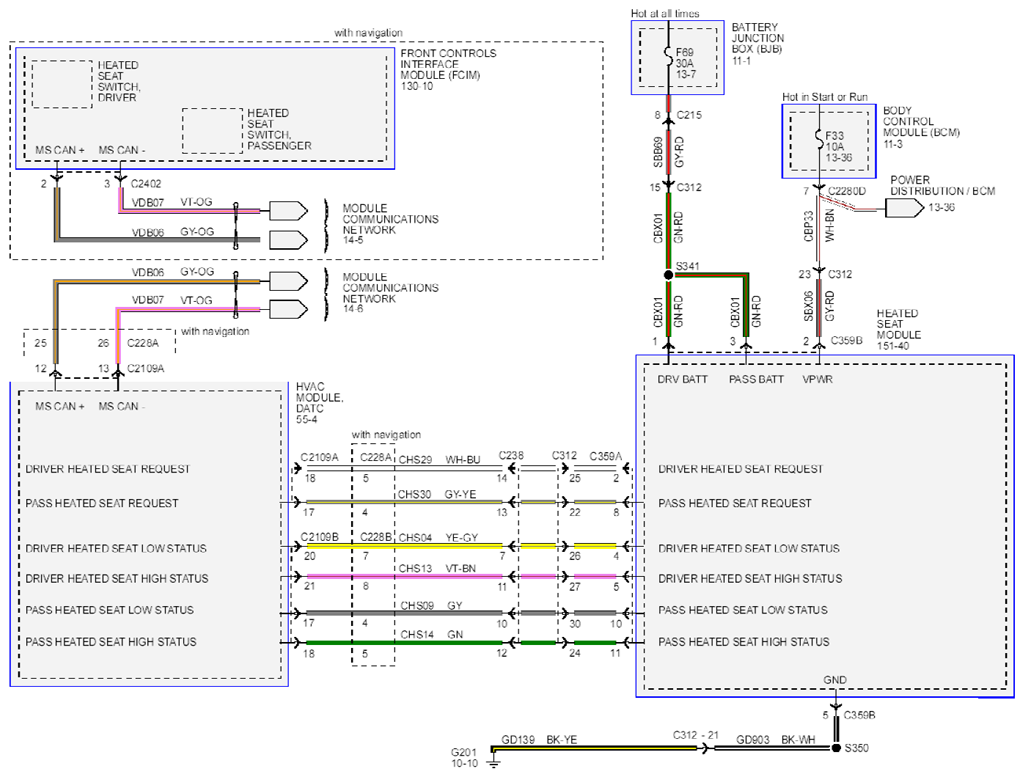

Fig 2: Climate Controlled Seats Circuit Diagram - With Heated Seats (2 Of 2)
