3.5L / 3.7L / 5.0L

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

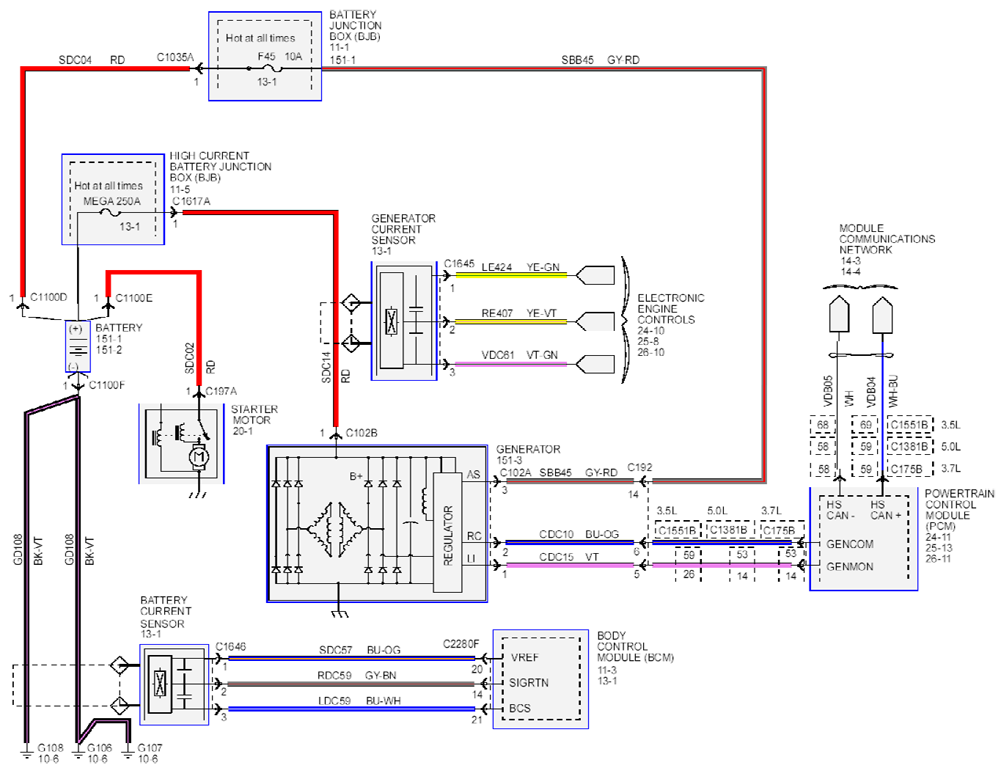

Fig 1: Charging System Circuit Diagram (3.5L/3.7L/5.0L)
G07907027Courtesy of FORD MOTOR CO.
