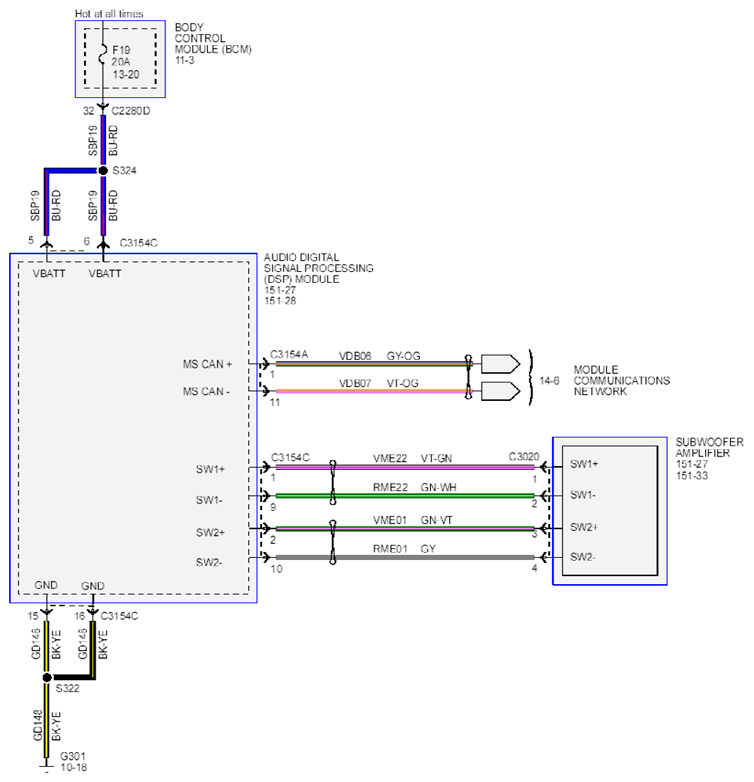

Fig 1: Audio System Navigation Circuit Diagram - With Sony® Sound (1 Of 4)
Courtesy of FORD MOTOR CO.

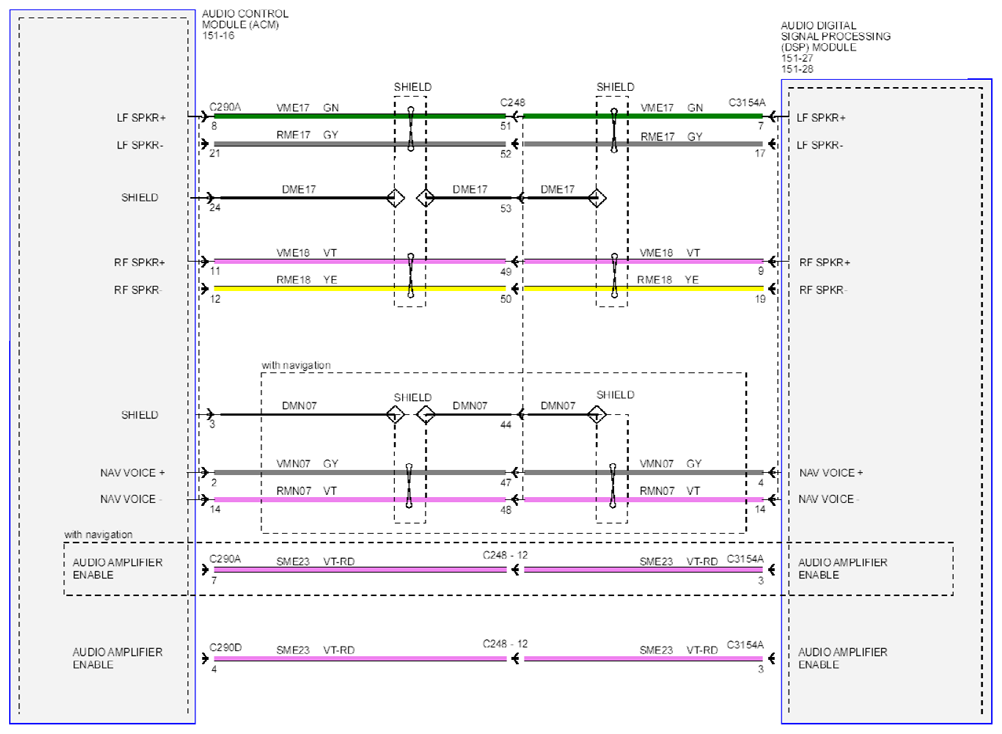

Fig 2: Audio System Navigation Circuit Diagram - With Sony® Sound (2 Of 4)
Courtesy of FORD MOTOR CO.

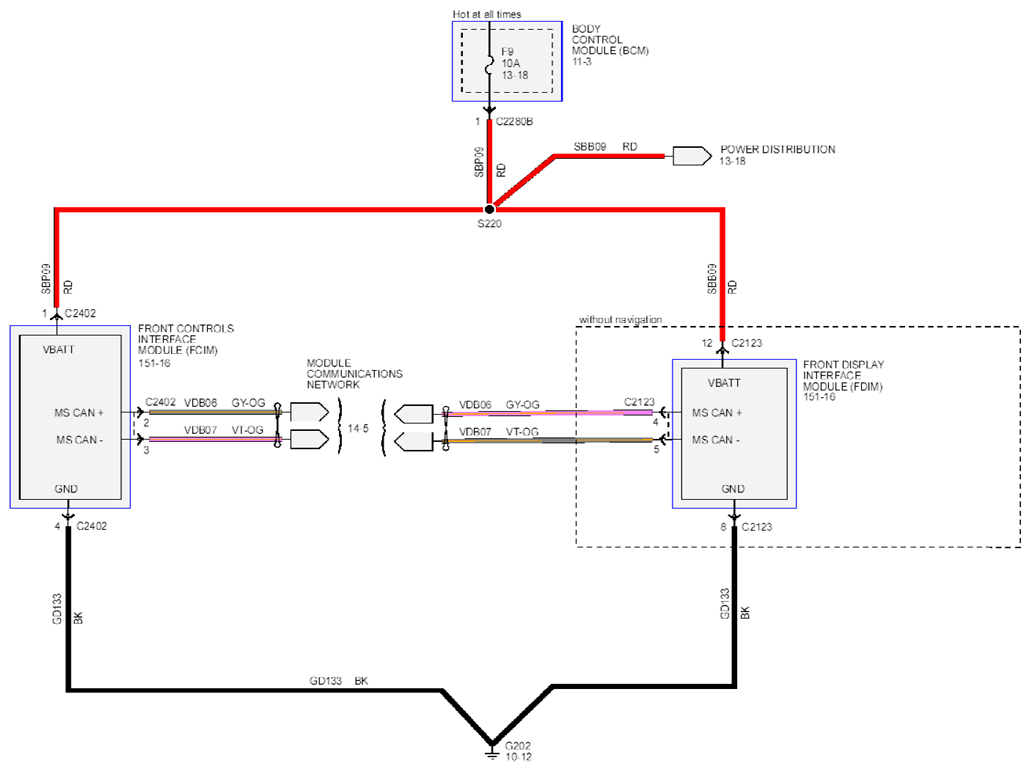

Fig 3: Audio System Navigation Circuit Diagram - With Sony® Sound (3 Of 4)
Courtesy of FORD MOTOR CO.

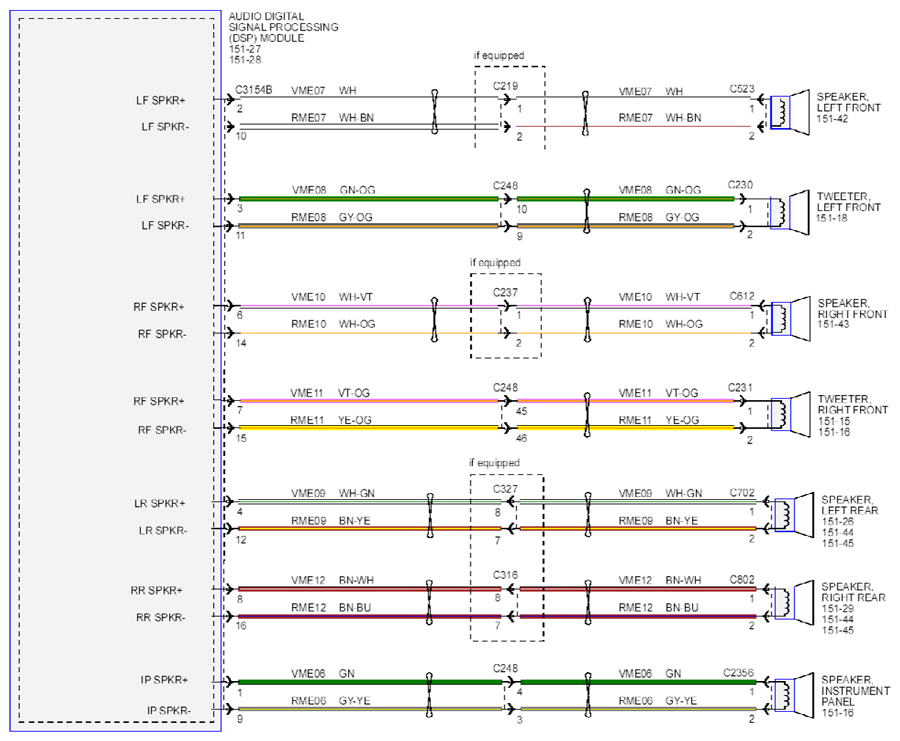

Fig 4: Audio System Navigation Circuit Diagram - With Sony® Sound (4 Of 4)
