With Redundant Audio Controls With Sync - With Navigation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

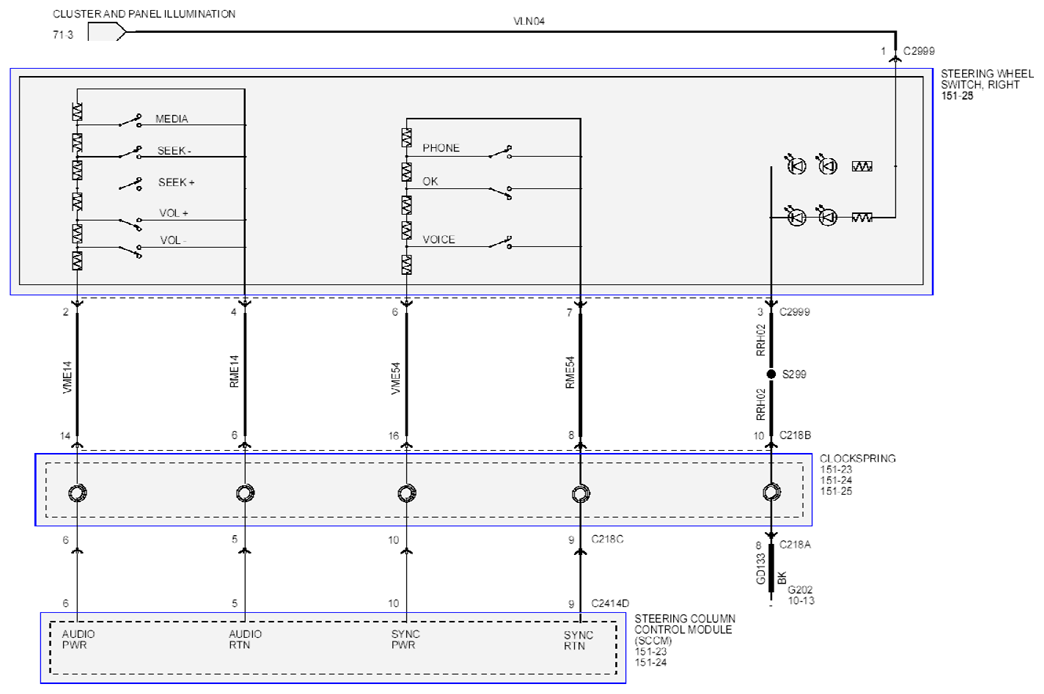

Fig 1: Audio System Navigation Circuit Diagram - With Redundant Audio Controls With SYNC - With Navigation
G07907279Courtesy of FORD MOTOR CO.
