Fig 1: Audio System Navigation Circuit Diagram - With Navigation (1 Of 2)
Courtesy of FORD MOTOR CO.

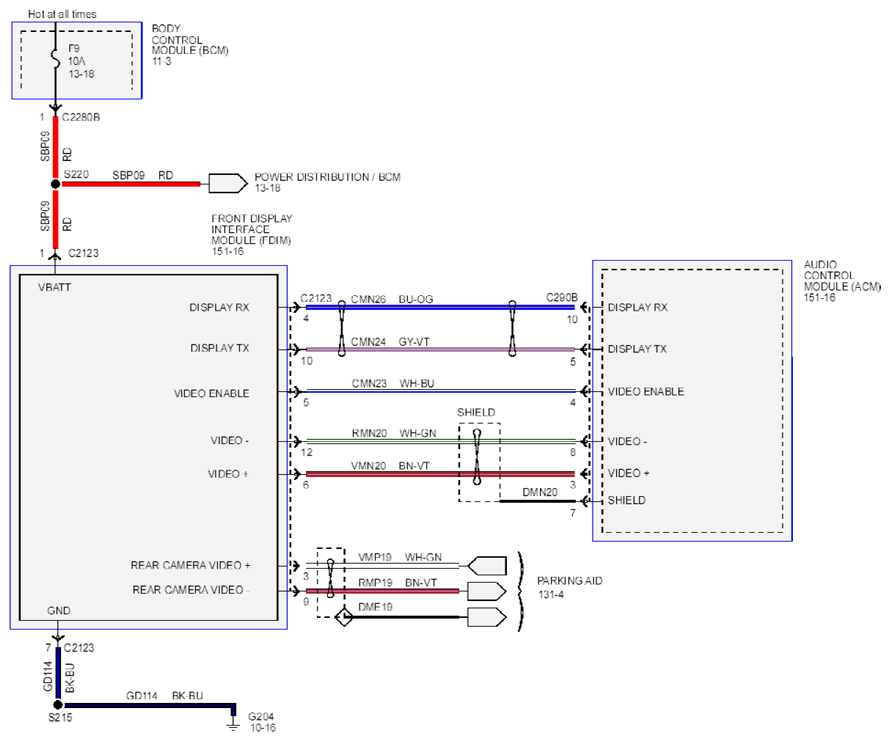

Fig 2: Audio System Navigation Circuit Diagram - With Navigation (2 Of 2)
