Electronic Shift On The Fly (ESOF)/TROQUE On Demand (Tod)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

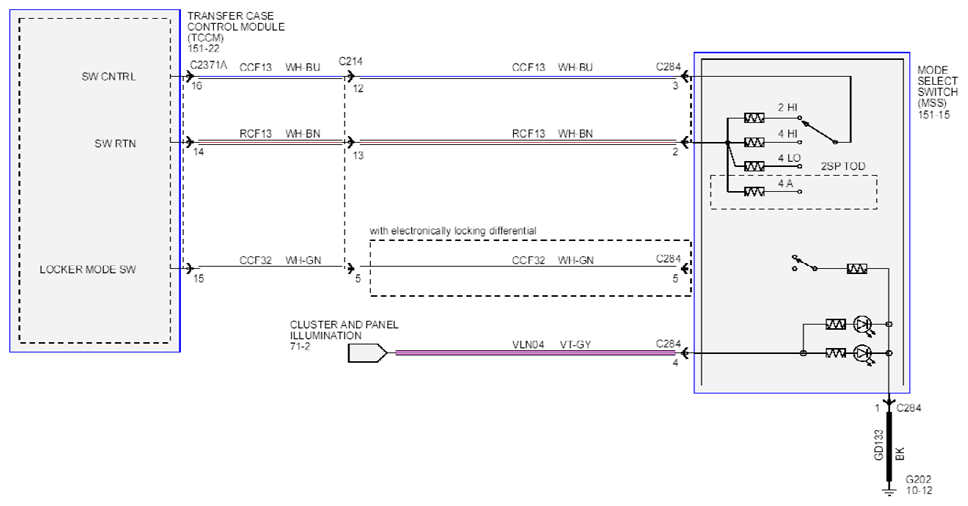

Fig 1: All Wheel Drive (AWD) Circuit Diagram - Electronic Shift On Fly/Torque On Demand (1 Of 3)
Courtesy of FORD MOTOR CO.

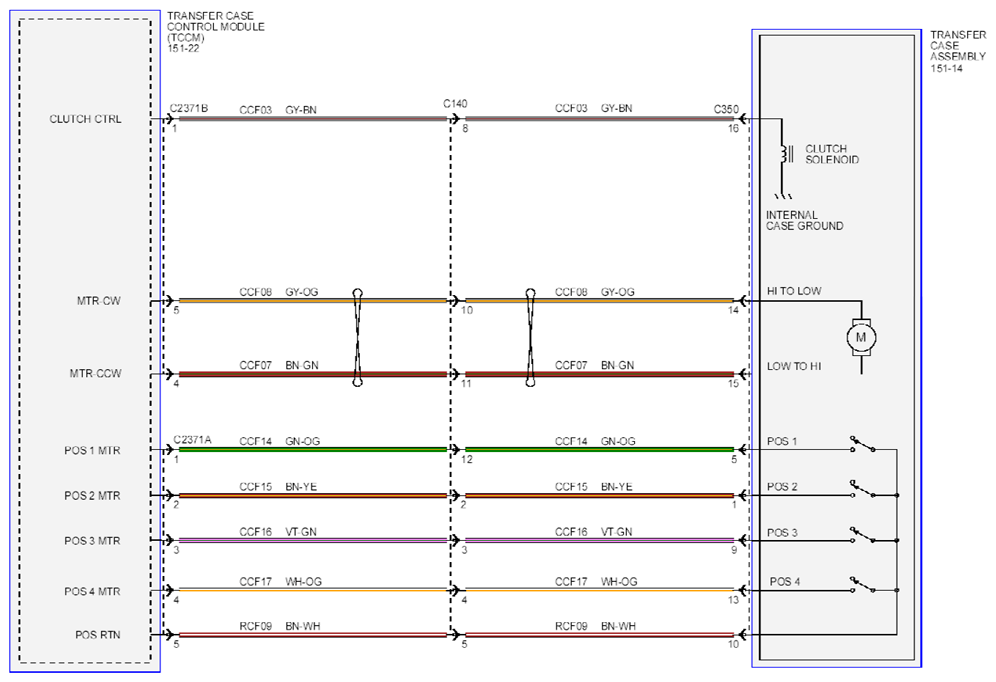

Fig 2: All Wheel Drive (AWD) Circuit Diagram - Electronic Shift On Fly/Torque On Demand (2 Of 3)
Courtesy of FORD MOTOR CO.

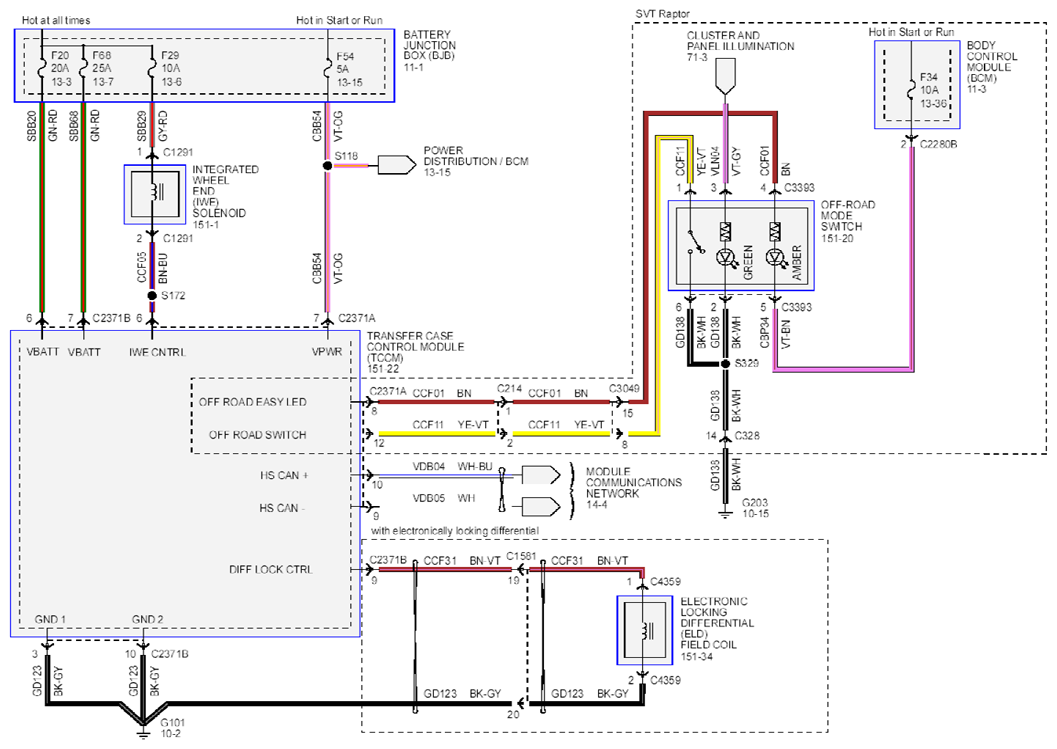

Fig 3: All Wheel Drive (AWD) Circuit Diagram - Electronic Shift On Fly/Torque On Demand (3 Of 3)
