All Wheel Drive (AWD): 4X2

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

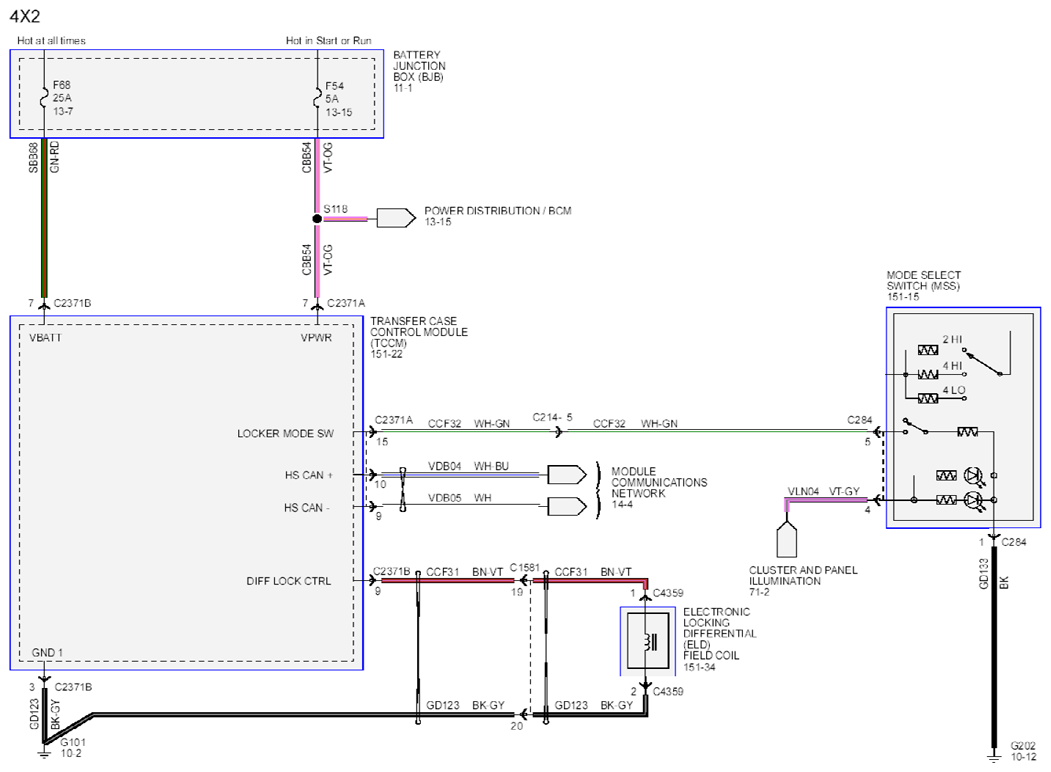

Fig 1: All Wheel Drive (AWD) Circuit Diagram - 4X2
G07907140Courtesy of FORD MOTOR CO.
