Pickup Bed: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Eight-foot styleside pickup bed shown in illustration, all other styleside similar.

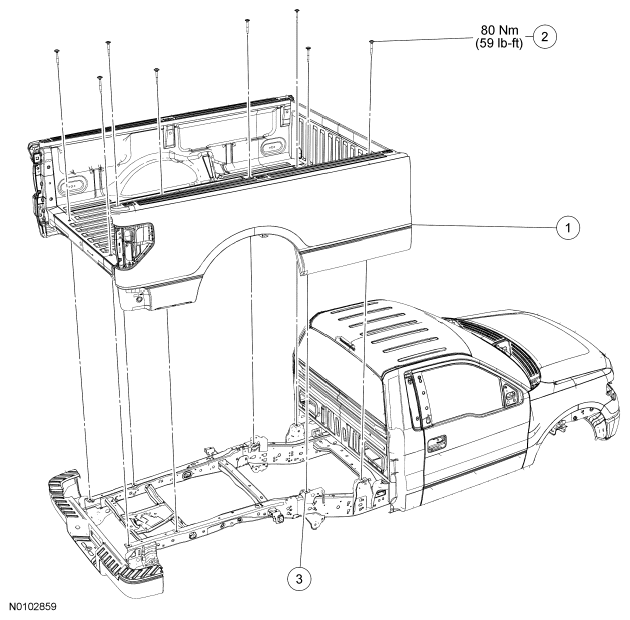

Fig 1: Pickup Bed Related Replacement Components With Torque Specifications (F-150 SVT Raptor)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9928508	Pickup box (complete assembly)
2	W709424	Pickup box bolt (all 8-foot pickup beds have 8 bolts; all others will have 6 bolts)
3	W708605/W712174	Pickup box attachment clip (8-foot beds [6-W708605, 2-W712174], 6.5 foot beds, [4-W708605, 2-W712174], 5.5 foot beds, [2- W708605, 4-W712174])
