Power Running Board (PRB): Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

	Fluke 77-IV Digital Multimeter FLU77-4 or equivalent
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

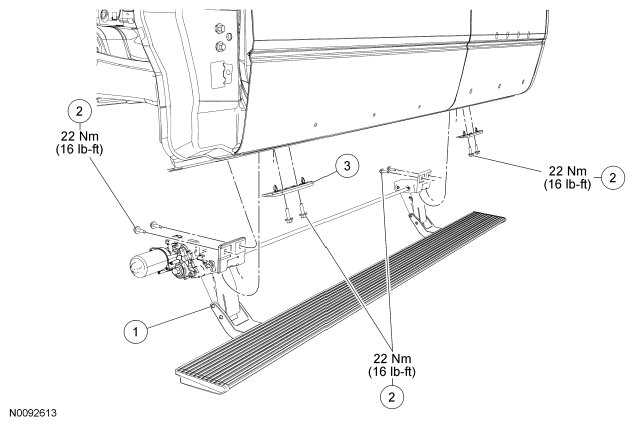

Fig 1: Power Running Board Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	16451C LH/16450E RH	Power Running Board (PRB) assembly
2	W705196	PRB assembly bolts (8 required)
3	16N454	PRB bracket cover (2 required)
