Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C-pillar trim panels. For additional information, REFER to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the 3 rear sound insulator pin-type retainers and remove the rear sound insulator.

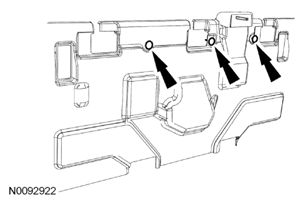

    Fig 1: Locating Rear Sound Insulator Pin-Type Retainers
    G07965085Courtesy of FORD MOTOR CO.
  3. Disconnect the Power Running Board (PRB) module electrical connectors.
  4. Remove the PRB module.
  5. To install, reverse the removal procedure.
