Power Running Board (PRB) Module: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

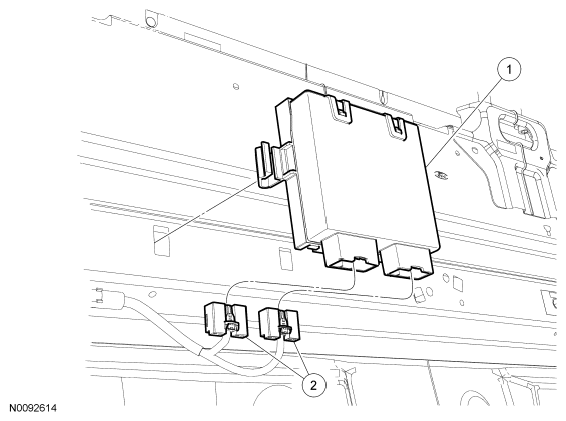

Fig 1: Identifying PRB Module With Electrical Connectors
G06462655Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14C177 Power Running Board (PRB) module
2 - PRB module electrical connectors
