F-150 SVT Raptor
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

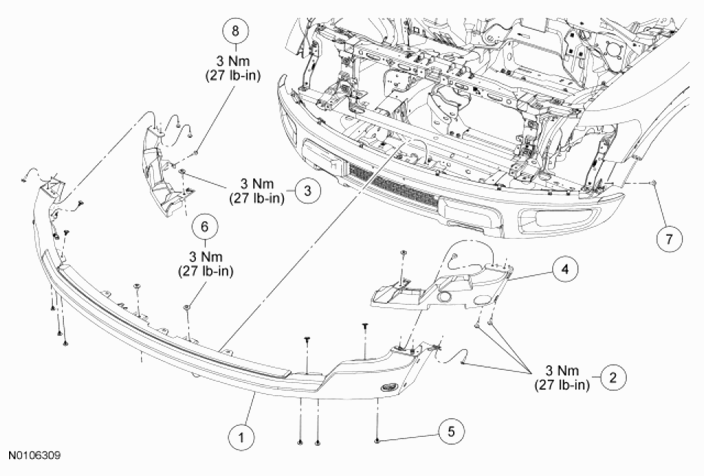

| Item | Part Number | Description |
|---|---|---|
| 1 | 17D957 | Front bumper cover |
| 2 | W505424 | Front bumper cover-to-fender bolts (6 required) |
| 3 | W505424 | Front bumper cover-to-radiator support bolt (2 required) |
| 4 | 17754 RH/17755 LH | Front bumper cover bracket |
| 5 | W705589 | Front bumper cover-to-bumper cover bracket pin-type retainer (10 required) |
| 6 | N811847 | Front bumper cover-to-bumper bracket bolt (2 required) |
| 7 | W705392 | Fender splash shield screw (2 required) |
| 8 | W505424 | Lower fender reinforcement-to-bumper cover bracket bolt (2 required) |
