Removal and Installation
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

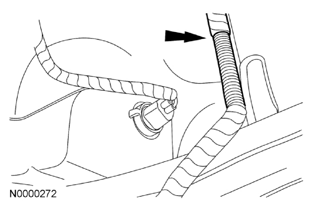

- Disconnect the 2 license plate lamp electrical connectors and unclip the harness from the bumper.
- If equipped, disconnect the parking aid sensors and unclip the harness from the bumper.
- If equipped, detach the trailer harness pin-type retainer from the rear bumper.
- Remove the rear bumper nuts.
- To install, tighten the new nuts to 175 Nm (129 lb-ft).
- Remove the rear bumper.
- To install, reverse the removal procedure.
- Transfer components as necessary. If equipped with a rear parking aid sensor, REFER to PARKING AID for additional information.
