Bumper - Rear: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

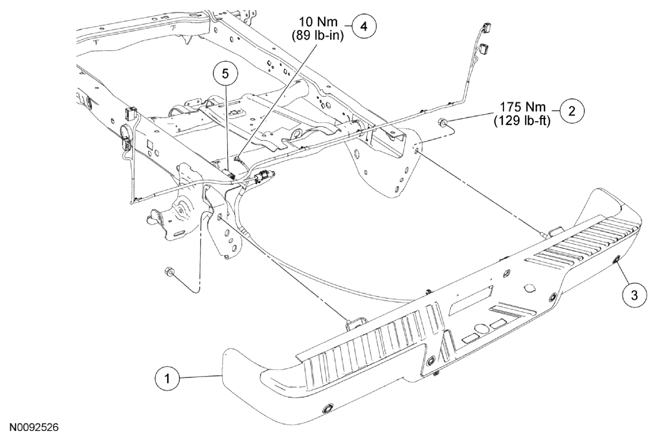

| Item |
Part Number |
Description |
| 1 |
17775 |
Rear bumper |
| 2 |
W708634-S |
Rear bumper nut (4 required) |
| 3 |
11523 |
Rear parking aid sensor (if equipped) |
| 4 |
W701082 |
Ground bolt |
| 5 |
- |
Rear electrical harness connector |
