F-150 Except F-150 SVT Raptor
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

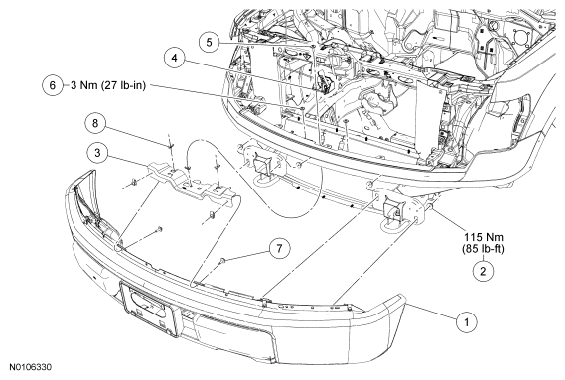

Fig 1: Front Bumper Replacement Components With Torque Specifications (F-150 Except F-150 SVT Raptor)
| Item | Part Number | Description |
|---|---|---|
| 1 | 17D957 | Front bumper |
| 2 | N804525-S | Front bumper nut (4 required) |
| 3 | 17C947 | Bumper cover-to-bumper bracket |
| 4 | 16B975 | Hood release |
| 5 | N811847 | Hood release bolt |
| 6 | N811847 | Bumper cover-to-bumper bracket bolt (2 required) |
| 7 | N811847 | Bumper bracket-to-bumper bolt (2 required) |
| 8 | W520802 | Bumper J-clip nut (5 required) |
