Video Camera - Rear: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

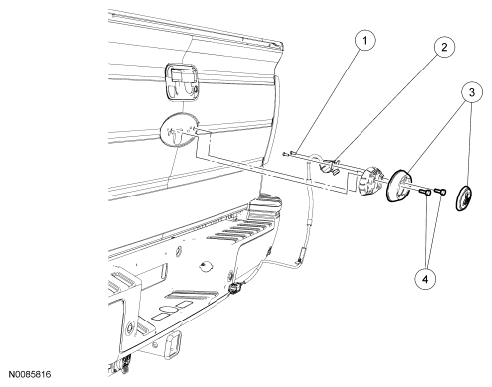

Fig 1: Identifying Ford Oval, Emblem, Bezel, Bolts And Video Camera
G06172424Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Video camera screws (2 required)
2 19G490 Video camera
3 - Ford oval emblem and bezel
4 - Ford oval emblem bezel bolts (2 required)
