Camera Switching Module: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

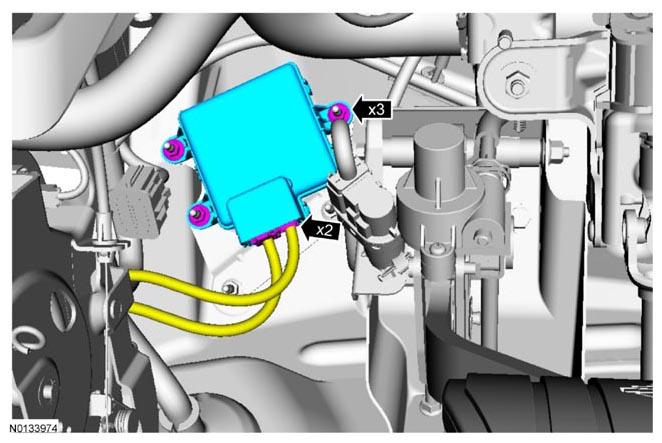

  1. Fig 1: Locating Camera Switching Module Electrical Connector And Nuts
    G07964227Courtesy of FORD MOTOR CO.
  2. If required, remove the camera switching module bracket.

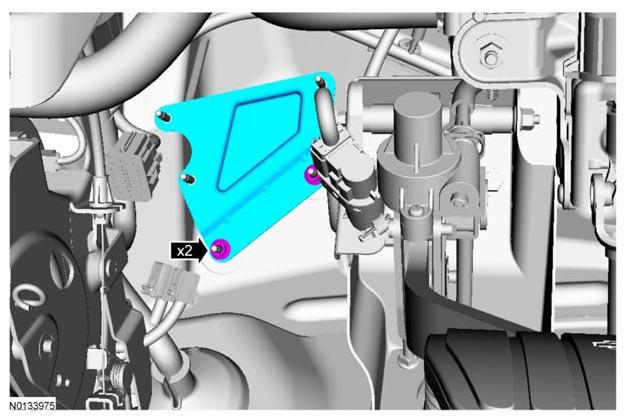

Fig 2: Locating Camera Switching Module Bracket Nuts
G07964228Courtesy of FORD MOTOR CO.
