Upper Oil Pan

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

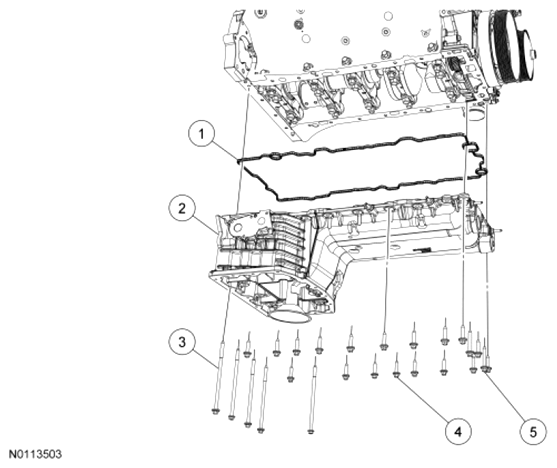

Fig 1: Exploded View Of Upper Oil Pan
G07480931Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6710 Oil pan gasket
2 6675 Upper oil pan
3 W714654 Upper oil pan bolt (5 required)
4 W503296 Upper oil pan bolt (18 required)
5 W503300 Upper oil pan bolt (2 required)
