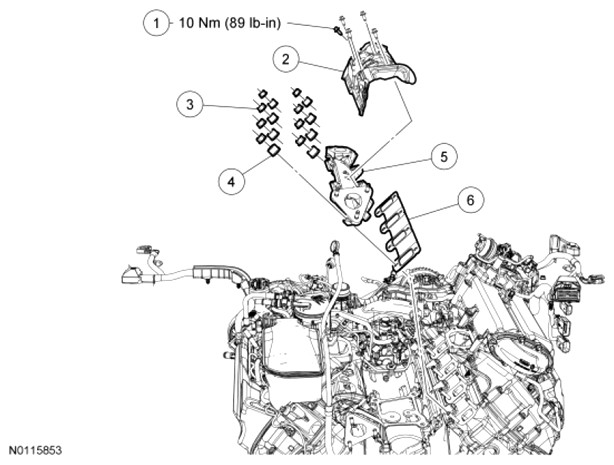

RH Exhaust Manifold
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W713535 |
Exhaust manifold heat shield bolt (5 required) |
| 2 |
9A462 |
Exhaust manifold heat shield |
| 3 |
W701706 |
Exhaust manifold nut (8 required) |
| 4 |
9A432 |
Exhaust manifold spacer (8 required) |
| 5 |
9430 |
Exhaust manifold |
| 6 |
9448 |
Exhaust manifold gasket |
