RH cylinder head

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

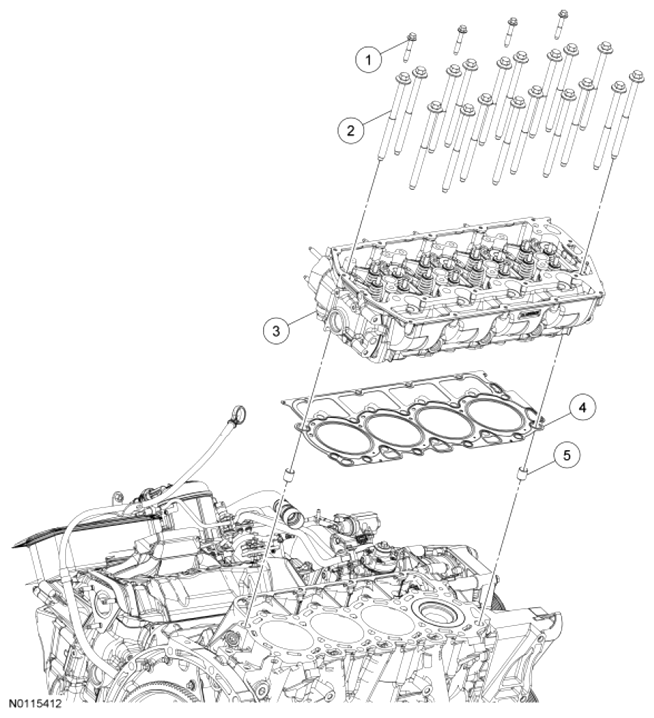

Fig 1: Identifying RH Cylinder Head Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6065	Cylinder head bolt (M8, 4 required)
2	6065	Cylinder head bolt (M12, 18 required)
3	6049	Cylinder head
4	6051	Cylinder head gasket
5	W714565	Cylinder head dowel (2 required)
