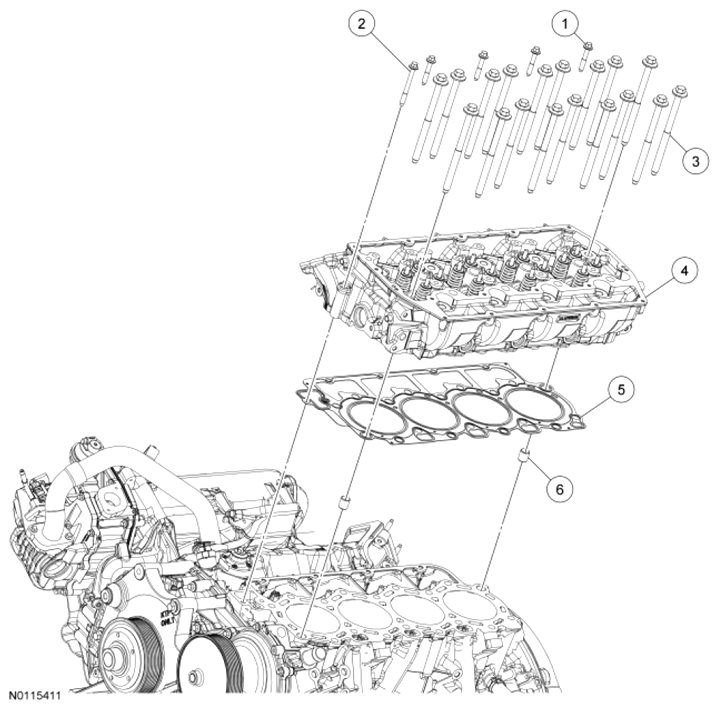

LH cylinder head
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6065 |
Cylinder head bolt (M8, 4 required) |
| 2 |
6065 |
Cylinder head bolt (M8) |
| 3 |
6065 |
Cylinder head bolt (M12, 18 required) |
| 4 |
6049 |
Cylinder head |
| 5 |
6051 |
Cylinder head gasket |
| 6 |
W714565 |
Cylinder head dowel (2 required) |
