Crankshaft Rear Seal: Installation
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

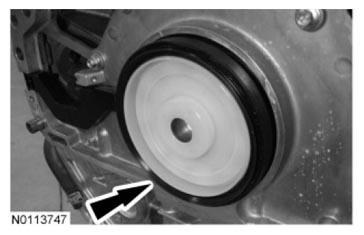

- Position the installation sleeve onto the crankshaft, slide the new rear crankshaft seal over the installation sleeve onto the crankshaft.
- Remove the installation sleeve.

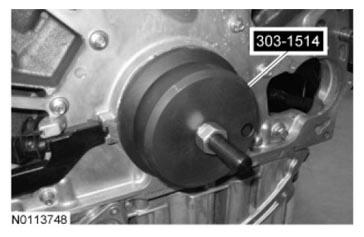

- Using the Rear Crank Seal Installer, install the new rear crankshaft seal.

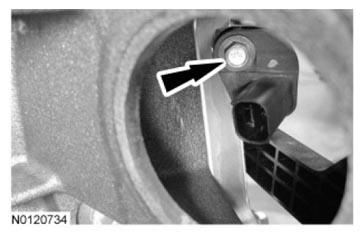

- Push the CKP sensor back in place and tighten the bolt.
- Tighten to 10 Nm (89 lb-in).

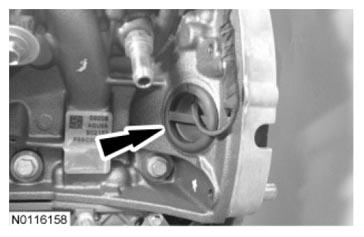

- Install the cylinder block opening cover.
- Install the crankshaft sensor pulse ring.
- Install the flexplate. For additional information, refer to Flexplate .
NOTE:
Failure to install the rear crankshaft seal with the part numbers facing out may result in engine damage.
NOTE:
Do not use grease or petroleum jelly instead of engine oil. Failure to follow this may result in rear crankshaft seal leakage.
NOTE:
Do not discard the installation sleeve provided with the rear crankshaft seal. It is used for installation of the crankshaft seal.
NOTE:
Check for correct orientation of the installation sleeve prior to sliding the seal on the crankshaft.
NOTE:
Apply clean engine oil to the outer diameter of the crankshaft seal and crankshaft sealing surface.
NOTE:
Do not use magnetic screwdrivers or other magnetic tools around the Crankshaft Position (CKP) sensor and the crankshaft sensor pulse ring or damage to the components may occur.
