Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the cooling fan and cooling fan stator. For additional information, refer to ENGINE COOLING - DIESEL ENGINE .
  3. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
    4. WARNING: Support the vibration damper during mounting bolt removal. The damper can slide off the nose of the crankshaft. Failure to follow this instruction may result in serious personal injury.

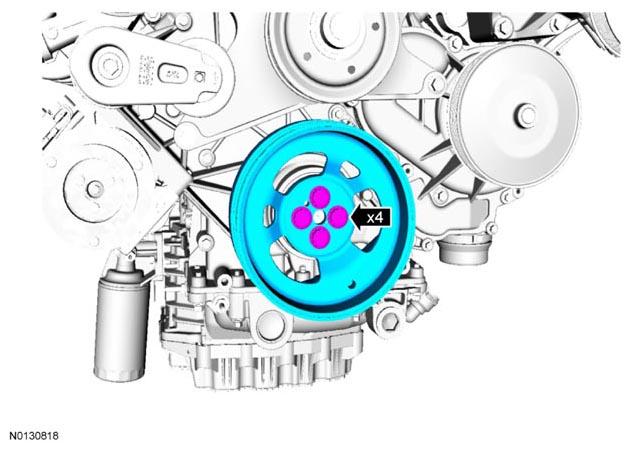

    Fig 1: Locating Crankshaft Pulley And Bolts
    G07970106Courtesy of FORD MOTOR CO.
  4. Remove the 4 bolts and the crankshaft pulley.
    • Discard the bolts.
